Energy Matters Power Monitor


The Energy Matters Power Monitor approximately measures the electricity generated by a solar power system and also the energy consumed by the household. It can be used to confirm a solar power system is working properly and also help monitor and reduce household energy consumption.



The system consists of two elements - the monitoring devices and an online interface.



THE POWER MONITOR

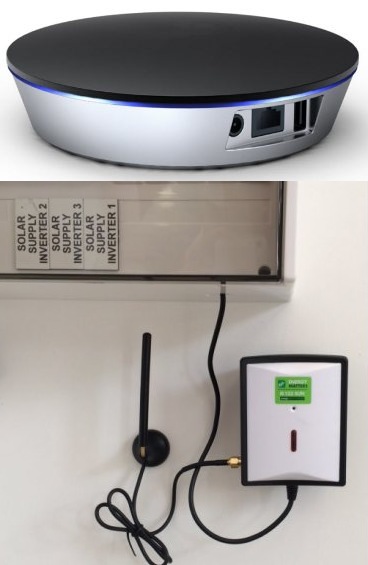

The physical power monitor element consists of  a gateway (plugged into a router via Ethernet), two battery powered sensors and a transmitter with antenna.



The sensors are attached to cables in the switchboard. The transmitter relays the information to the gateway, which sends the data through a secure connection to a central database via the user's WiFi network and broadband connection.



The batteries in the transmitter should last 1-2 years and are simple to replace.



Energy Matters Power Monitor



THE ONLINE INTERFACE



Users can login to the secure My Energy Matters interface via their handheld device or computer and view how their system is performing 24/7; plus monitor power consumption in real time, view charts and set email alerts. Features will be regularly added to the online interface as they are developed.




Energy Matters Power Monitor Online Dashboard




Sample Energy Matters Power Monitor Performance Chart



TRY THE DEMO:



Access the demonstration account here.



Username: demo
Password: demo



CURRENT KEY FEATURES



  • Emails an alert if your solar PV system stops working
  • Email an alert if your consumption goes above a certain limit
  • Tells you what percentage of your consumption is supplied by your solar PV
  • Allows you to identify power hungry appliances and reduce your consumption



SYSTEM REQUIREMENTS



  • Single phase electricity supply & single switchboard on the site
  • Broadband internet with a spare Ethernet port on the router



ENERGY MATTERS POWER MONITOR DOWNLOADS






PLEASE NOTE:
This is an archive page for information purposes only.
  • Model: empower
  • Shipping Weight: 1kg
  • Manufacturer:
    Energy Matters

This product was added to our catalog on Monday 05 November, 2012.
