Modular Battery Storage Solution

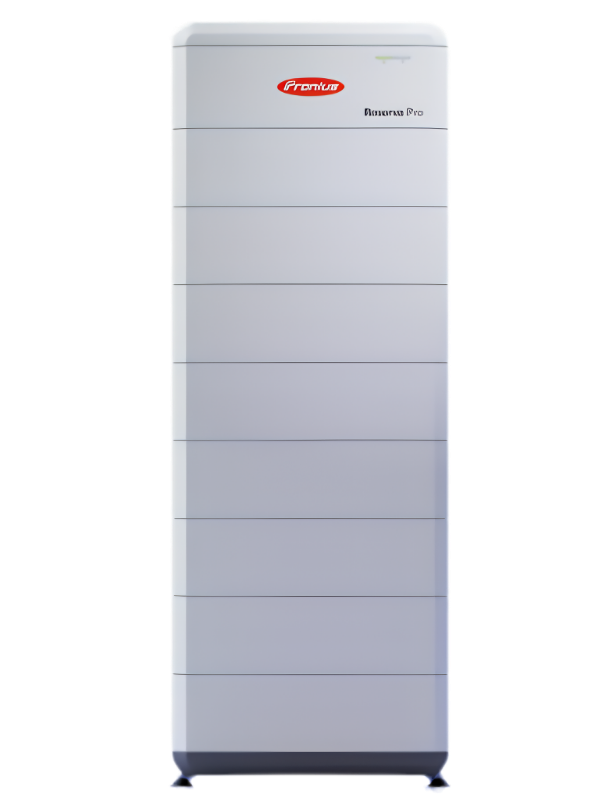

Australian households and businesses are storing more of their own solar power than ever, and the battery storing it matters as much as the panels on the roof. This Fronius Reserva Pro review examines a modular battery storage solution built for exactly that job: homes, farms, and businesses that need more capacity than a standard household battery can offer.
The Fronius Reserva Pro scales from 12 kWh in a single tower to 128 kWh across four towers wired in parallel, so the same product line covers both a large family home and a mid-sized commercial site. Its European-made lithium iron phosphate (LFP) cells, DC-coupled design, and tight integration with Fronius GEN24 Plus and Verto Plus inverters target buyers who want to maximise self-consumption, cut grid electricity costs, and keep essential circuits running during an outage.
Did you know Energy Matters is Australia’s largest renewable news, blog and educational resource? Subscribe to Energy Matters’ weekly newsletter and keep updated even with incentives, rebates and recommended solar product offers.
Key features of the Fronius Reserva Pro
The Fronius Reserva Pro modular battery storage solution is a high-voltage battery platform intended for larger residential, agricultural and commercial energy systems. Its defining feature is scalability: a tower can be configured with three to eight battery modules, delivering approximately 12–32 kWh of usable capacity per tower. Up to four towers can be connected in parallel, taking the potential system capacity to 128 kWh.
This modular design can make the Fronius Reserva Pro particularly attractive when energy requirements are expected to increase. Instead of committing to a very large battery bank immediately, system designers can select an appropriate configuration and plan for expansion where the inverter and installation design support it.
- Modular capacity: Reserva Pro 12.0 through Reserva Pro 32.0 offer six configurations, with approximately 11.9–31.9 kWh of usable energy per tower.
- Expandable architecture: Up to four Fronius Reserva Pro towers can operate in parallel, enabling systems to reach a total nominal storage capacity of up to 128 kWh.
- LFP chemistry: The battery uses lithium iron phosphate (LFP) chemistry, supporting a safety-focused, long-life storage design.
- High-voltage DC coupling: The battery is designed to work with compatible Fronius hybrid inverters, supporting efficient DC-coupled solar storage.
- Backup capability: When correctly designed with compatible Fronius equipment, the wider system can provide backup functionality and support greater energy resilience.
- Fronius ecosystem integration: Solar.web provides system monitoring, while Fronius also offers intelligent energy management functions designed to optimise storage around PV production, consumption, and electricity prices.
- Outdoor protection: The battery system has an IP65 protection rating and is specified for indoor or protected outdoor installation.
- Australian compliance: Fronius lists RCM as an applicable certification and standard for the Reserva Pro.
Specifications of the Fronius Reserva Pro
Fronius sells the Reserva Pro in five tower sizes, each built from the same 3.98 kWh module. Usable capacity, weight, and physical height increase with the module count, while voltage range, protection class, and warranty terms remain consistent across the range.
Specification | Fronius Reserva Pro |
Battery type | High-voltage modular battery |
Cell chemistry | Lithium iron phosphate (LFP) |
Usable capacity per tower | Approx. 11.9–31.9 kWh |
Models | Reserva Pro 12.0, 16.0, 20.0, 24.0, 28.0, 32.0 |
Modules per tower | 3–8 |
Maximum parallel towers | Up to 4 |
Maximum total system capacity | Up to 128 kWh |
Maximum output current | 50 A, subject to inverter limitations |
Protection rating | IP65 |
Operating temperature | -20°C to +50°C |
Maximum installation altitude | 2,000 m |
Permitted humidity | 5–95% |
Installation | Indoor and protected outdoor areas |
Compatible inverters | Fronius Primo GEN24 Plus, Symo GEN24 Plus and Verto Plus, depending on configuration |
Connection | Stäubli MC4 Evo Stor |
Interface | Modbus (RS485) |
Standards/certifications listed by Fronius | VDE 2510-50, IEC 62619:2022, IEC 62040-1, CE, RCM, UN38.3 |
Fronius Reserva Pro Warranty
The Fronius Reserva Pro warranty is one of the stronger aspects of the product proposition. Fronius lists a 10-year warranty with 80% state of health (SOH) for the Reserva Pro.
For battery buyers, consider warranty duration alongside the conditions attached to capacity retention. A 10-year warranty does not necessarily mean the battery will deliver its original usable capacity for the entire period; the stated 80% SOH figure provides a more useful benchmark for evaluating long-term capacity expectations.
Pros of the Fronius Reserva Pro
- Massive scalability: Expands smoothly from 12 kWh up to 128 kWh, making it suitable for both large luxury homes and commercial enterprises.
- European cell manufacturing: Uses high-grade European-made LFP cells and modules, delivering superior quality control and ethical production standards.
- Wireless plug-and-play assembly: Modular stackable design eliminates complex internal cabling, speeding up initial installation and future module add-ons.
- Full three-phase backup power: Delivers reliable backup power and black-start functionality to handle high starting currents during grid failures.
- DC-coupled high efficiency: Connects directly on the DC side with Fronius hybrid inverters to minimise efficiency losses during charge and discharge cycles.
- Built-in visual display: Features an integrated status display directly on the battery tower for instant site diagnostics without needing a mobile app.
Cons of the Fronius Reserva Pro
- Higher starting footprint: Starting at a minimum capacity of 12 kWh (3 modules), it may be oversized for small single-phase households with low daily energy usage.
- Higher initial investment: European manufacturing and premium components carry a higher upfront purchase price compared to budget Asian tier-1 batteries.
- Inverter ecosystem lock-in: Requires pairing with compatible Fronius hybrid inverters (GEN24 Plus or Verto Plus) to unlock its full feature set and DC efficiency.
- Expansion window limits: Additional modular capacity retrofits are recommended within the first two years of initial system commissioning for optimal cell balancing.
Applications for the Fronius Reserva Pro
- Large residential estates: Ideal for modern suburban properties or multi-story homes equipped with high-power appliances, ducted air-conditioning, electric vehicle chargers, and swimming pool heat pumps.
- Commercial & industrial buildings: Perfect for small- to medium-sized enterprises (SMEs), workshops, and office sites looking to reduce peak demand charges, capture solar surplus, and safeguard server rooms during grid outages.
- Agricultural operations: Well-suited for Australian farms, dairies, and orchards requiring uninterrupted power supply for irrigation pumps, cold storage units, and automated feeding systems.
Read more about:
Is the Fronius Reserva Pro right for you?
The Fronius Reserva Pro review verdict for Australia is strongest for buyers who need more than a basic residential battery and value the ability to scale their storage. Its 12–32 kWh-per-tower range, four-tower parallel capability, LFP chemistry and Fronius ecosystem integration make it a serious option for larger homes, farms and commercial applications.
Before selecting a Fronius Reserva Pro modular battery storage solution, however, start with your actual electricity consumption rather than the maximum battery capacity. Review your daily and seasonal energy use, solar production, evening demand, backup priorities, available installation space and future electrification plans.
The Fronius Reserva Pro is worth considering if:
- You already have, or plan to install, compatible Fronius hybrid inverter technology.
- Your electricity demand is high enough to justify substantial battery storage.
- You want a modular battery that can scale beyond a typical single residential battery.
- Backup power and energy resilience are important.
- You want to increase solar self-consumption and reduce dependence on grid electricity.
- Your property has sufficient space for a larger battery installation.
It may be less suitable if:
- Your household has relatively low electricity consumption.
- You need only a small amount of overnight storage.
- You are committed to a different inverter ecosystem.
- Your installation location cannot accommodate a large battery tower.
- The additional storage capacity does not provide enough financial or practical benefit to justify the investment.
