Residential & Small Commercial Energy Storage Battery

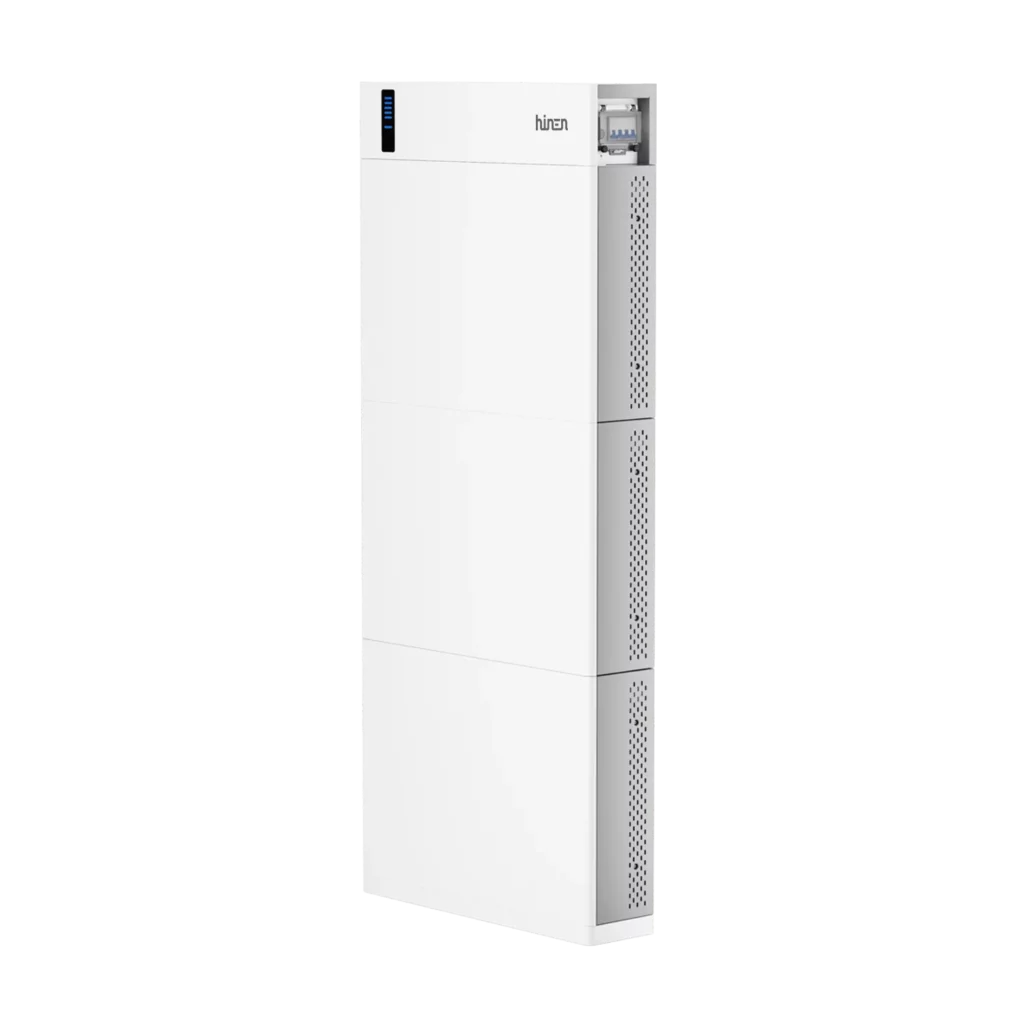

The Hinen B8900M-HA is a high-voltage battery module built for households and small commercial sites that need more headroom than a low-voltage stack can easily provide.
It’s the storage half of Hinen’s A Series; paired with a compatible high-voltage hybrid inverter, it forms an integrated system rather than working as a bolt-on addition.
Aimed at larger homes, sites with heavier loads, or installers wanting fewer, higher-capacity modules instead of many small ones, the B8900M-HA trades the B5000’s low-voltage simplicity for higher throughput per unit.
What is the Hinen B8900M-HA?
Each B8900M-HA module is rated at roughly 8.9 kWh, built on LiFePO4 cells, and designed to be clustered, up to six battery clusters can run in parallel off a single compatible inverter.
In practical terms, that means a single module suits a smaller high-demand household, while stacking multiple clusters can push total system capacity well beyond 100 kWh for larger site; Hinen’s own literature cites configurations up to roughly 160 kWh when paired with the full A Series inverter range.
Continuous charge and discharge current is rated at up to 52 A per module, noticeably higher than the B5000’s 100 A ceiling across an entire low-voltage bank, which is the main reason installers reach for this module on properties with heavier simultaneous loads (multiple air conditioners, EV charging, or workshop equipment, for example).
Connection is plug-and-play between modules (no additional inter-module cabling) and the battery includes an optional heating function for reliable operation in cold climates.
Key features of the Hinen B8900M-HA
High continuous charge/discharge current
Rated at up to 52 A continuous per module, supporting faster energy flow for higher-demand systems.
Cluster-parallel architecture
Supports up to six battery clusters running in parallel per compatible inverter, for large-scale capacity.
Stackable, cable-free design
Modules connect directly to each other without additional inter-module cabling, simplifying installation and future expansion.
Optional cold-climate heating
An optional battery heating function supports reliable charge and discharge performance down to -20°C.
Automotive-grade cell monitoring
Uses an automotive-grade AFE (analog front-end) chip for higher-accuracy voltage and current sensing across the pack.
5-layer battery protection
Includes:
- Full-coverage temperature detection
- BMS intelligent control for over-temperature, over-current, and over-voltage protection
- Built-in DC breaker
- Internal aerosol fire extinguisher
- Decompression valve
Smart app monitoring
Provides visible energy tracking and remote firmware upgrades through the Hinen app.
LiFePO4 chemistry
Uses lithium iron phosphate cells for improved thermal stability compared with some other lithium-ion chemistries.
Specifications of the Hinen B8900M-HA
- Model: B8900M-HA / B8900M-HAW
- Battery type: High-voltage residential/commercial energy storage module
- Chemistry: LiFePO4
- Rated energy per module: 8.9 kWh
- Max continuous charge/discharge current: 52 A per module
- Max clusters in parallel: 6 per inverter
- Maximum system capacity: Up to approximately 160 kWh (full A Series configuration)
- Cold-climate operation: Optional heating function to -20°C
- DC protection: Built-in DC breaker
- Communication: RS485 / Wi-Fi, with LCD and app display
- Monitoring: Hinen mobile app
- Installation: Floor standing
- Protection rating: IP65
Hinen B8900M-HA warranty
The B8900M-HA is covered under Hinen’s standard Australian residential battery warranty terms, alongside the B5000 and A Series systems.
- 10-year product warranty covering manufacturing defects, with full replacement offered in year one
- Performance warranty guaranteeing at least 70% of original usable capacity after 10 years, or until a minimum energy throughput of 3.65 MWh per usable kWh is reached
- Cloud registration is generally required to keep warranty coverage active, unless waived by the installer
- Accessories such as energy meters carry a shorter, separate warranty term (typically 2 years)
Pros of the Hinen B8900M-HA
Fewer modules for the same capacity
At 8.9 kWh per unit, reaching a large system size takes fewer physical modules than stacking low-voltage batteries, which can simplify wiring and floor space planning.
Headroom for demanding households
The 52 A per-module current rating gives it more capacity to handle simultaneous heavy loads than a comparable low-voltage setup.
Genuinely commercial-scale ceiling
Scaling to roughly 160 kWh puts this module in range for small commercial sites, not just single households, without switching to a different product line.
Faster installation for larger systems
Cable-free module connections cut down on the wiring work that usually comes with assembling a large battery bank.
Same backing as the rest of the range
It shares Hinen’s standard 10-year product and performance warranty terms with the B5000, so buyers aren’t stepping down in coverage to get the extra capacity.
Cons of the Hinen B8900M-HA
Tied to Hinen’s high-voltage inverter ecosystem
Unlike the low-voltage B5000, which supports multiple third-party protocols, the B8900M-HA is designed to run within Hinen’s own A Series hybrid inverter platform.
Overkill for smaller homes
An 8.9 kWh minimum module size is a larger first step than the B5000’s 5.12 kWh, so it isn’t the most efficient starting point for modest household loads.
Floor-standing only
Unlike the B5000’s wall-mount option, this module requires floor space, which matters in smaller plant rooms or garages.
Limited independent field data
As a newer, higher-capacity product in a newer brand’s range, there’s less long-term installed performance history to draw on compared with established high-voltage systems.
Applications for the Hinen B8900M-HA
Larger residential systems
Suits homes with heavier daily loads (multiple air conditioners, pool pumps, or EV charging) that outgrow a low-voltage battery bank.
Small commercial and light industrial sites
The higher per-module capacity and current rating make it a candidate for small businesses or sites with multiple high-power loads.
New-build, high-voltage installs
Suits installers designing a system around Hinen’s A Series inverter from the outset, rather than retrofitting storage onto an existing low-voltage setup.
Sites planning significant future expansion
The cluster-parallel design and high capacity ceiling suit properties expecting to add EV charging, additional building loads, or further electrification down the line.
Is the Hinen B8900M-HA suitable for you?
Choose this battery if:
- You’re designing a system around a high-voltage hybrid inverter from the start
- Your household or site has higher-than-average simultaneous power demand
- You want to reach a large system size with fewer physical battery units
- You’re sizing a small commercial or light industrial storage system
- You have the floor space for a floor-standing unit
It may not be ideal if:
- You want to retrofit storage onto an existing low-voltage or third-party inverter setup
- You only need a modest amount of storage for a smaller household
- You’re short on floor space and need a wall-mounted option
- You want the broadest possible track record before committing to a battery brand
For larger households and small commercial sites building around Hinen’s high-voltage A Series platform, the B8900M-HA offers a genuinely scalable, cluster-parallel battery module with strong continuous current performance and the same warranty backing as the rest of Hinen’s range.
