Three-Phase Solar + Storage Inverter
The HYXiPOWER H15K-25K-HT is a three-phase hybrid inverter range built for larger residential properties, commercial sites, and advanced energy storage systems.
Designed to manage solar generation, battery charging, backup power, and grid interaction in one integrated platform, the series is aimed at users with higher energy demands or more complex solar installations.
With support for large PV arrays, fast battery charging, generator integration, and UPS-grade backup switching, the H15K-25K-HT series is designed for systems focused on energy independence, backup resilience, and smart energy management.
For larger hybrid solar installations, this inverter series acts as the central energy management hub.

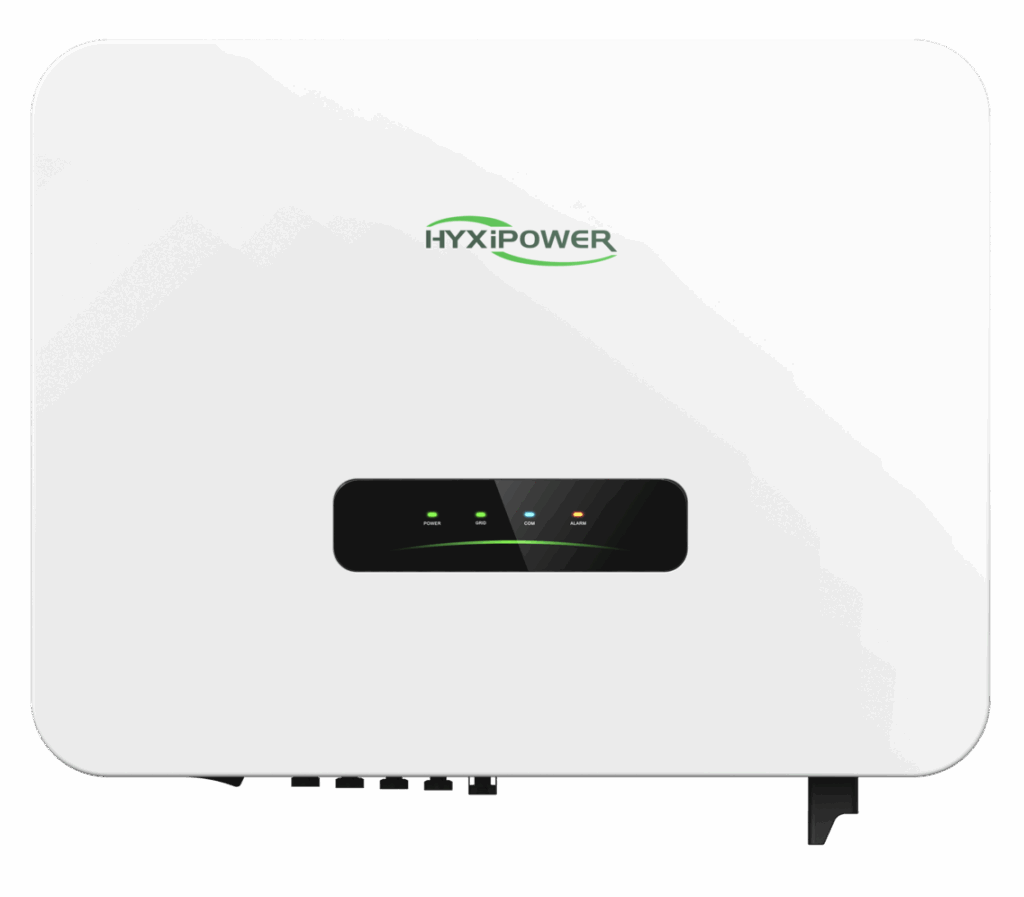

What is the HYXiPOWER H15K-25K-HT Hybrid Inverter?
The HYXiPOWER H15K-25K-HT is a three-phase hybrid inverter series available in 15 kW, 20 kW, and 25 kW models.
It connects solar panels, battery storage systems, the electricity grid, and optional generators into one integrated energy system.
The inverter converts solar energy for on-site use, stores excess generation in batteries, and automatically switches to backup operation during grid outages.
Unlike standard commercial string inverters, this system is designed to manage both solar generation and battery storage, making it suitable for larger hybrid and backup-capable installations.
Key features of the HYXiPOWER H15K-25K-HT
Large-scale hybrid integration
Combines solar generation, battery storage, backup supply, and grid management within a single three-phase inverter platform.
High PV oversizing support
Supports up to 160% PV oversizing, allowing larger solar arrays to maximise energy production potential.
Wide MPPT operating range
Features a startup voltage of around 160 V and an MPPT operating range of approximately 140–1000 V for improved solar harvesting across changing conditions.
High-current PV input design
Supports higher PV input currents suited to modern high-output solar panels.
Fast battery charging and discharging
Supports high battery charge and discharge rates for faster energy storage cycling and stronger backup support.
Strong backup capability
Provides up to 150% off-grid overload output for handling high-demand appliances and temporary peak loads during outages.
UPS-grade backup switching
Automatically transitions between grid and battery supply in under 10 ms to help maintain power to essential loads.
Advanced safety protections
Includes surge protection, arc fault detection support, rapid shutdown functionality, anti-islanding protection, and ground fault detection.
Smart monitoring and diagnostics
Supports app and web-based monitoring, intelligent diagnostics, and real-time system tracking.
Generator and heat pump integration
Supports integration with generators and compatible heat pump systems for broader energy control.
Outdoor-ready construction
IP65-rated enclosure with corrosion resistance designed for outdoor installation.
Specifications of the HYXiPOWER H15K-25K-HT
- Inverter range: 15 kW / 20 kW / 25 kW
- System type: Three-phase hybrid inverter
- Max PV input voltage: Up to 1100 V
- MPPT voltage range: Approx. 140–1000 V
- Startup voltage: Around 160 V
- Number of MPPTs: Multiple MPPT trackers for flexible array design
- PV oversizing support: Up to 160%
- Battery voltage range: Approx. 150–600 V
- Max battery charge/discharge current: High-current support for faster cycling
- Maximum efficiency: Up to ~98.6%
- Battery efficiency: Up to ~97.7%
- Backup switching time: <10 ms
- Protection rating: IP65
- Cooling: Smart air cooling
- Operating temperature: Wide operating range suited to harsh climates
- Monitoring: App and web platforms
- Communication: CAN / RS485 / Wi-Fi / LAN / optional 4G depending on configuration
HYXiPOWER H15K-25K-HT warranty
HYXiPOWER products are supported in Australia through installer and distributor networks.
Warranty terms can vary depending on the supplier and installation package.
Coverage generally includes:
- Manufacturing defect protection
- Performance-related coverage
- Installer-backed local support
- Optional extended warranty through some suppliers
Pros of the HYXiPOWER H15K-25K-HT
Designed for larger systems
Suitable for large residential properties, commercial sites, and high-consumption applications.
Strong solar input capability
Supports large PV arrays with high oversizing allowances and wide MPPT operating ranges.
Fast battery performance
High battery charge/discharge capability improves energy storage responsiveness.
Reliable backup operation
Fast switching and strong overload support improve outage resilience.
Advanced protection systems
Includes surge protection, arc fault detection support, and rapid shutdown capability.
Smart monitoring features
Real-time monitoring and diagnostics simplify system management.
Flexible integration options
Supports generators, high-voltage batteries, and broader electrification setups.
Weather-ready construction
Designed for outdoor installation with strong protection against environmental conditions.
Cons of the HYXiPOWER H15K-25K-HT
More suited to larger installations
May be oversized for smaller homes with modest energy usage.
Requires compatible high-voltage batteries
Battery functionality depends on pairing with suitable storage systems.
Newer brand presence in Australia
HYXiPOWER has a smaller local installation footprint compared with longer-established inverter manufacturers.
Installation complexity
Three-phase hybrid systems are more complex and typically require experienced installers.
Applications for the HYXiPOWER H15K-25K-HT
Large residential hybrid systems
Suitable for larger homes with high energy consumption and battery storage requirements.
Commercial solar + storage
Designed for businesses combining solar generation with battery storage and backup capability.
Backup power systems
Supports critical loads during outages with fast automatic switching.
Electrification projects
Can support growing electrical demand from EV charging, heat pumps, workshops, or commercial equipment.
Off-grid and fringe-grid support
Generator integration allows extended backup capability in unreliable-grid or remote applications.
Is the HYXiPOWER H15K-25K-HT suitable for you?
Choose this inverter if:
- You are building a large solar + battery system
- You need three-phase backup capability
- You want high PV oversizing support
- You need fast battery charging and strong backup performance
- You want advanced monitoring and smart energy management
- You are running higher-demand residential or commercial loads
It may not be ideal if:
- You only need a standard grid-tied inverter
- Your property has relatively low energy usage
- You are not planning to install battery storage
- You prefer a longer-established inverter brand
For larger residential and commercial hybrid systems, the HYXiPOWER H15K-25K-HT series offers strong solar input capability, advanced hybrid functionality, and flexible energy management for solar-plus-storage installations.
