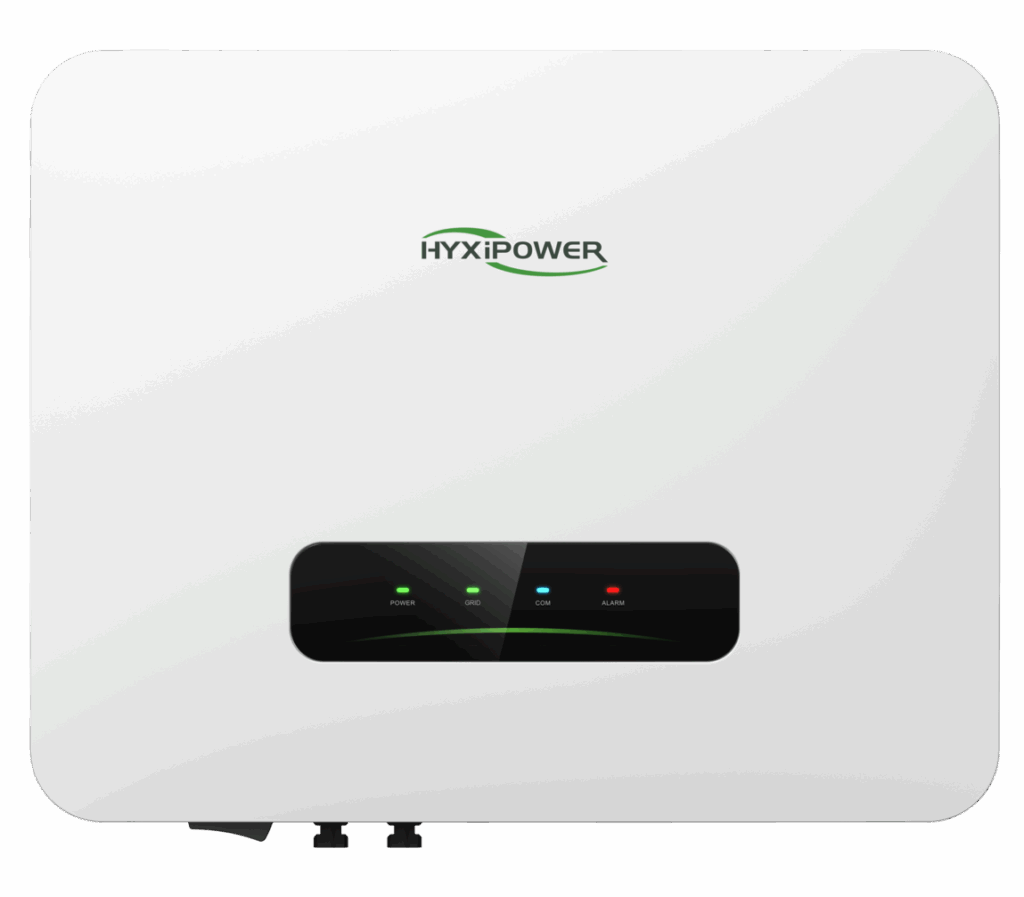

Solar Inverter | Three Phase
The HYXiPOWER S8-12K-T is a three-phase string inverter built for residential and small commercial solar systems that need higher capacity and stable output.
Designed for efficiency and durability, it converts solar energy into usable electricity while handling larger system sizes with ease.
With strong DC oversizing capability, wide MPPT range, and advanced safety features, it’s suited to installations where performance and reliability matter.
For properties running three-phase power, this inverter provides a solid foundation for consistent solar generation.
What is the HYXiPOWER S8-12K-T?
The S8-12K-T is a three-phase string inverter designed to convert DC electricity from solar panels into AC power for use in homes or businesses.
It supports multiple MPPT inputs, allowing different panel orientations or roof sections to operate efficiently within the same system.
Unlike hybrid inverters, this model does not manage battery storage directly and is focused purely on solar generation and grid interaction.
Key features of the HYXiPOWER S8-12K-T
High DC oversizing capability
Supports up to 160% DC oversizing, allowing larger solar arrays to maximise energy generation throughout the day.
High conversion efficiency
Delivers up to 98.5% efficiency, helping reduce energy losses during conversion.
Wide MPPT voltage range
Maintains strong performance across varying sunlight conditions and system configurations.
Dual MPPT tracking
Allows panels across different roof angles or orientations to operate independently for better output.
Advanced arc fault protection (AFCI)
Detects faults across the system and shuts down rapidly to improve safety.
Type II surge protection
Includes built-in DC and AC surge protection to safeguard against electrical spikes.
Smart monitoring and diagnostics
Offers real-time data tracking, app-based monitoring, and system diagnostics for easier management.
IP66-rated enclosure
Designed for outdoor installation in harsh environments, with strong resistance to dust and water.
Specifications of the HYXiPOWER S8-12K-T
- Inverter power range: 8 kW, 10 kW, 12 kW (three phase)
- Max PV input voltage: Up to 1100 V
- MPPT voltage range: Approx. 140–1000 V
- Start-up voltage: ~160 V
- Number of MPPTs: 2
- Max input current per MPPT: 18 A
- Efficiency: Up to 98.5%
- Grid connection: 3-phase (380/400 V)
- Protection rating: IP66 (outdoor installation)
- Cooling: Smart air cooling
- Monitoring: App, Wi-Fi/4G/RS485 communication
HYXiPOWER S8-12K-T warranty
HYXiPOWER inverters are supplied through installer and distributor networks in Australia.
- Warranty terms depend on supplier and installation package
- Coverage typically includes manufacturing defects and performance
- Local support availability varies by region
Pros of the HYXiPOWER S8-12K-T
Handles larger solar systems
Designed for higher-capacity installations, making it suitable for homes or businesses with greater energy demand.
Strong efficiency performance
High conversion efficiency helps maximise usable solar output.
Flexible system design
Dual MPPT tracking allows for more complex roof layouts and panel configurations.
Built-in safety features
Includes arc fault detection, surge protection, and multiple system protections.
Durable outdoor build
IP66 rating ensures reliability in harsh weather conditions.
Advanced monitoring tools
Provides real-time performance tracking and system diagnostics.
Cons of the HYXiPOWER S8-12K-T
No battery integration
Does not support direct battery connection, requiring a separate hybrid inverter for storage systems.
Three-phase requirement
Only suitable for properties with three-phase power, limiting use in standard residential setups.
Applications for the HYXiPOWER S8-12K-T
Three-phase residential systems
Ideal for larger homes with higher energy consumption and three-phase electrical supply.
Small commercial installations
Suitable for offices, workshops, and small businesses requiring stable solar output.
Complex roof layouts
Works well for systems with multiple orientations or shading conditions.
Grid-tied solar systems
Designed for systems focused purely on solar generation without battery storage.
Is the HYXiPOWER S8-12K-T suitable for you?
Choose this inverter if:
- You have a three-phase power supply
- You are installing a medium to large solar system
- You want high efficiency and flexible panel configuration
- You do not require battery storage integration
It may not be ideal if:
- You want an all-in-one solar + battery system
- Your property only has single-phase power
- You are planning a smaller residential installation
