Dual-Glass Module | 530W-550W

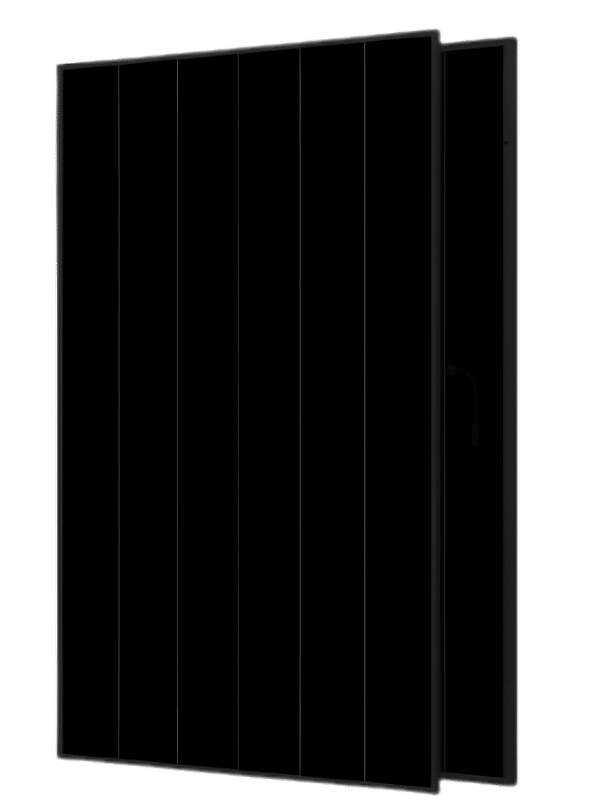

The AIKO NEOSTAR 3S+60 Dual-Glass 530W-550W is designed for buyers looking for high module power and efficiency in a relatively compact 60-cell-format panel. The Australian version uses N-type ABC cell technology, dual-glass construction and a black anodised aluminium frame, with the range reaching 550W and 24.8% module efficiency.
For households with limited roof space, higher-output modules can potentially increase installed capacity without requiring a proportionally larger array. However, the panel’s physical size, 27.1kg weight and electrical characteristics still need to be matched carefully with the roof structure, inverter and installation design.
Did you know Energy Matters is Australia’s largest renewable news, blog and educational resource? Subscribe to Energy Matters’ weekly newsletter and keep updated even with incentives, rebates and recommended solar product offers.
Key features of the AIKO NEOSTAR 3S+60 Dual-Glass
The AIKO NEOSTAR 3S+60 Dual-Glass 530W-550W is part of AIKO’s third-generation NEOSTAR range. Its headline specifications include up to 550W of output and up to 24.8% efficiency, making it a high-power option for installations where available roof area matters.
The panel combines N-type ABC cells with a dual-glass module structure. AIKO also specifies a temperature coefficient of -0.26%/°C for maximum power, along with features aimed at partial-shading performance, high-temperature operation, and micro-crack resistance.
- 530W to 550W power range: The 2026 ANZ datasheet lists five rated variants: 530W, 535W, 540W, 545W, and 550W.
- Up to 24.8% efficiency: The 550W version reaches 24.8% module efficiency under standard test conditions.
- N-type ABC cell technology: AIKO uses All Back Contact technology, placing the electrical contacts on the rear side of the cells.
- Dual-glass construction: The module uses 2.0mm + 2.0mm coated semi-tempered glass.
- Partial-shading optimisation: AIKO identifies partial-shading optimisation as a technical feature of the range.
- Low degradation: AIKO specifies no more than 1% degradation during the first year and no more than 0.35% annually from years two through 30.
- High-temperature performance: The Pmax temperature coefficient is specified at -0.26%/°C.
- Micro-crack resistance: AIKO lists micro-crack resistance as a module technical feature.
- IP68 junction box: The junction box incorporates three bypass diodes.
- IEC Class A fire rating: The current ANZ datasheet lists an IEC Class A fire rating.
For Australian homeowners, the combination of high power, high efficiency and a relatively compact footprint is particularly relevant when roof space is limited. The dual-glass design is also intended to provide a durable module structure, although the final suitability of any panel depends on the roof, mounting system and local environmental conditions.
Specifications of the AIKO NEOSTAR 3S+60 Dual-Glass
Specification | AIKO NEOSTAR 3S+60 Dual-Glass |
Power range (Pmax) | 530W, 535W, 540W, 545W, 550W (power tolerance 0 to +3%) |
Module efficiency | 23.9% to 24.8% |
Cell technology | N-type ABC (All Back Contact), 120 cells (6 x 20) |
Glass | Dual glass, 2.0 + 2.0 mm coated semi-tempered |
Frame | Black anodised aluminium |
Dimensions and weight | 1954 x 1134 x 30 mm, 27.1 kg (±3%) |
Voltage at max power (Vmp) | 38.20 V to 38.60 V |
Open-circuit voltage (Voc) | 45.40 V to 45.80 V |
Current at max power (Imp) | 13.88 A to 14.25 A |
Short-circuit current (Isc) | 14.76 A to 14.92 A |
Temperature coefficient (Pmax) | -0.26%/°C (Voc -0.22%/°C, Isc +0.05%/°C) |
Bifaciality | Pmax 40% ±5%, Voc 98% ±5%, Isc 45% ±5% |
Maximum system voltage | DC 1500 V (maximum series fuse 30 A) |
Static load (front/rear) | 5400 Pa / 2400 Pa |
Operating temperature | -40°C to +70°C |
Hail test and fire rating | 35 mm hail at 27.2 m/s; IEC Class A |
Junction box and connectors | IP68, 3 bypass diodes; Stäubli MC4 EVO2; 4 mm² cable, 1200 mm |
AIKO NEOSTAR 3S+60 Dual-Glass Warranty
- Comprehensive product warranty: Includes a 25-year product warranty covering material defects, manufacturing faults, and mechanical failure. Local presence in Australia supports responsive customer service and warranty claims processing.
- 30-year linear power warranty: Guarantees no more than 1% degradation in year one and 0.35% per year thereafter. Panels maintain at least 88.85% of their original nameplate power after 30 years.
- Long-term asset protection: Dual-glass structural integrity minimises long-term microcracking and moisture-ingress risk. This makes it a dependable choice for coastal installations across Australia.
Pros of the AIKO NEOSTAR 3S+60 Dual-Glass
- Ultra-high efficiency: Achieves up to 24.8% module efficiency, placing it among Australia’s highest-performing panels.
- Exceptional heat resilience: The low -0.26%/°C temperature coefficient prevents steep power losses during extreme heatwaves.
- Robust dual-glass design: Provides maximum protection against PID, salt fog, and environmental corrosion.
- Industry-leading degradation rate: Backed by 0.35% annual degradation, preserving output far better than standard panels over 30 years.
- Sleek aesthetics: Back contact cell architecture removes unsightly front silver busbars for a clean, modern appearance.
- Advanced shade tolerance: An optimised cell layout limits output degradation when partial shading affects individual sections.
Cons of the AIKO NEOSTAR 3S+60 Dual-Glass
- Premium capital cost: It costs more upfront than standard PERC or basic TOPCon alternatives.
- Slightly larger form factor: At 1.95m in length, the module is larger than standard 400W–450W residential panels, so it requires careful roof planning.
- Weight considerations: Dual-glass variants can be heavier, requiring two-person handling and robust mounting hardware.
- Inverter matching requirements: High string current and voltage output require proper inverter pairing to avoid clipping.
Applications for the AIKO NEOSTAR 3S+60 Dual-Glass
The AIKO NEOSTAR 3S+60 Dual-Glass is aimed mainly at residential rooftops and small commercial projects where space and aesthetics matter. Its ratings also suit demanding Australian conditions.
- Space-limited residential roofs: More watts per panel helps when roof area is the constraint. Check roof direction too, using our guide to solar panel orientation.
- Solar and battery systems: Higher generation per roof can help charge a home battery. Check our page for our recommended solar and battery products.
- Hot and coastal regions: The lower temperature coefficient and salt mist, ammonia, sand and dust testing suit tough climates.
- Raised, ground-mounted or carport systems: Bifacial rear gain is more likely with open airflow and light surfaces below.
- Small commercial rooftops: The 1500 V rating and high output suit shops, offices and farm sheds.
Is the AIKO NEOSTAR 3S+60 Dual-Glass right for you?
The AIKO NEOSTAR 3S+60 Dual-Glass 530W-550W may be worth considering if your priority is high solar output from each module rather than simply finding the lowest-cost panel. Its 530W–550W range, up to 24.8% efficiency, N-type ABC cells, dual-glass construction and long warranty coverage give it a feature set aimed at performance-focused installations.
It can be especially relevant for homeowners with limited usable roof area or households planning significant electrification. However, the best panel for an individual property depends on the full system, not the module alone.
Consider this panel if:
- You want high-wattage solar modules.
- Roof space is limited.
- You are building a new solar system rather than retrofitting individual panels.
- You want a high-efficiency module.
- Long-term product and performance warranty coverage is important.
- You are planning a solar-and-battery system.
- Your household has high or growing electricity consumption.
- Your installer confirms compatibility with the selected inverter and mounting system.
You may want to compare alternatives if:
- Your roof cannot comfortably accommodate a 1,954mm-long module.
- Module weight is a major structural consideration.
- Your existing inverter has tight MPPT current limits.
- Your priority is the lowest upfront installed cost.
- Your system requires mixing different module types or electrical characteristics.
The installer should calculate string voltage and current at the expected operating temperatures and check the inverter’s maximum DC input current and voltage. They should also assess roof loading, mounting compatibility, local network requirements and any applicable Australian installation standards.
