Mono-Glass | 530W-555W

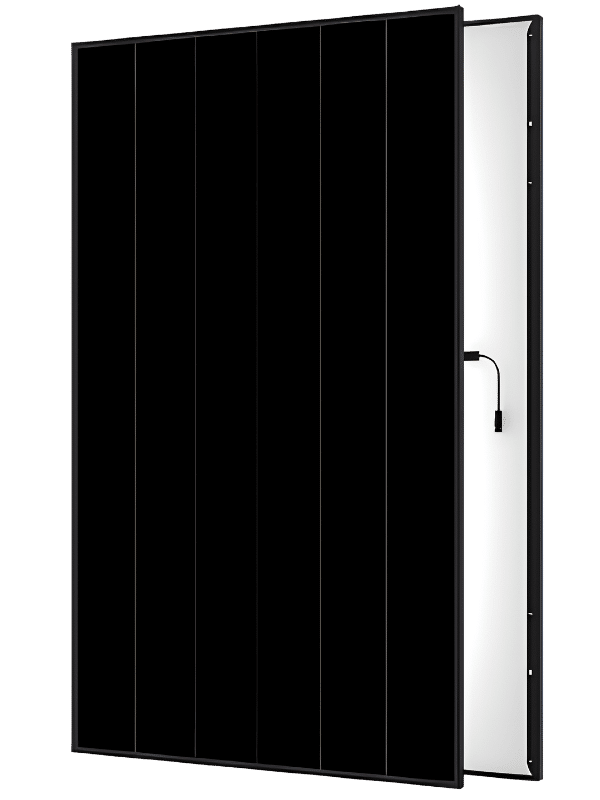

The AIKO NEOSTAR 3S60 Mono-Glass 530W-555W is a third-generation high-output solar panel range using N-type ABC (All Back Contact) cell technology. AIKO lists the series at up to 25.0% module efficiency, with a 25-year product warranty and 30-year performance warranty.
For Australian homeowners considering high-efficiency solar, the AIKO NEOSTAR 3S60 Mono-Glass deserves consideration because its power density can help maximise generation where roof space is limited. However, always assess panel specifications alongside the inverter, roof orientation, shading, installation conditions, and installer quality.
Did you know Energy Matters is Australia’s largest renewable news, blog and educational resource? Subscribe to Energy Matters’ weekly newsletter and keep updated even with incentives, rebates and recommended solar product offers.
Key features of the AIKO NEOSTAR 3S60 Mono-Glass
The AIKO NEOSTAR 3S60 Mono-Glass combines back-contact cell design with a robust single-glass build. These are the features that matter most for Australian homes.
- N-type ABC cells: all contacts sit on the rear of the cell, so no front-side busbars block light. The panel also looks cleaner on the roof.
- Efficiency up to 25.0%: the six power classes from 530W to 555W deliver more output from the same roof area. That helps when space is limited.
- Partial shading optimisation: AIKO designed the panel to limit losses when part of it is shaded. Chimneys, vents and the odd tree branch matter less.
- North-south roof utilisation: the design aims to maximise installed capacity on roofs where panels face different directions. It pairs well with advice on the best roof direction for solar.
- Better temperature coefficient: at -0.26%/°C for maximum power, output holds up better as panels heat up in summer.
- Hot-spot suppression and micro-crack resistance: AIKO also says the busbar-free front reduces failure risk and cuts electrical connection points by about 5.5% for the same DC capacity.
Specifications of the AIKO NEOSTAR 3S60 Mono-Glass
The AIKO NEOSTAR 3S60 Mono-Glass series contains six rated power variants. Importantly, electrical values change slightly between the 530W and 555W versions, so installers should use the exact module model selected when checking string voltage, current and inverter compatibility.
Specification | AIKO NEOSTAR 3S60 Mono-Glass |
Cell technology | N-type ABC |
Number of cells | 120 (6 × 20) |
Module efficiency | 23.9%-25.0% |
Maximum rated output | 555W |
Dimensions | 1954 × 1134 × 30mm |
Weight | 23.2kg ±3% |
Front cover | 3.2mm tempered mono-glass |
Backsheet | High weather-resistant backsheet |
Frame | Black anodised aluminium |
Maximum power temperature coefficient | -0.26%/°C |
Voc temperature coefficient | -0.22%/°C |
Isc temperature coefficient | +0.05%/°C |
Maximum system voltage | DC1500V |
Maximum series fuse | 25A |
Junction box | IP68, 3 bypass diodes |
Connector | Stäubli MC4 EVO2 series |
Operating temperature | -40°C to +70°C |
Static load | Front +5400 Pa/back -2400Pa |
Hail test | 35mm diameter at 27.2m/s |
Fire rating | IEC Class C |
AIKO NEOSTAR 3S60 Mono-Glass Warranty
The AIKO NEOSTAR 3S60 Mono-Glass carries one of the longest warranty packages in the residential market. AIKO separates coverage for manufacturing faults from coverage for long-term output.
- 25-year product warranty: covers manufacturing defects and material faults, such as junction box or frame issues.
- 30-year performance warranty: guarantees output over three decades, with first-year degradation of 1% or less and 0.35% per year or less afterwards. That works out to roughly 88.85% of rated output at year 30.
- Installer warranty is separate: workmanship and mounting cover come from your installer, so ask for it in writing.
Panel warranties are only as good as the company honouring them. Check who handles claims in Australia before you sign.
Pros of the AIKO NEOSTAR 3S60 Mono-Glass
The AIKO NEOSTAR 3S60 Mono-Glass stands out for efficiency, heat tolerance and warranty strength. Here are its six biggest strengths.
- Top-tier efficiency: up to 25.0% means more watts from every square metre of roof.
- Sleek, busbar-free front: the back-contact design gives a cleaner look than conventional front-contact panels.
- Strong hot-weather performance: the -0.26%/°C temperature coefficient limits summer losses across much of Australia.
- Better with shade and awkward roofs: partial shading optimisation and north-south utilisation suit real-world roofs.
- Long warranty cover: 25 years on the product and 30 years on performance, with low annual degradation.
- Rebate-ready in Australia: AIKO states its panels are Clean Energy Council (CEC) listed, so a SAA-accredited installer can claim STCs under the federal scheme.
Cons of the AIKO NEOSTAR 3S60 Mono-Glass
No panel suits everyone, and the AIKO NEOSTAR 3S60 Mono-Glass has trade-offs worth weighing. These are the four main drawbacks.
- Backsheet, not dual glass: the rear is a weather-resistant backsheet, not glass. AIKO’s dual-glass NEOSTAR 3S+60 is the alternative if maximum durability is your priority.
- Premium pricing: back-contact panels typically cost more than mainstream PERC or TOPCon modules. The extra efficiency needs to justify the upfront cost on your roof.
- Large format: at 1954 x 1134 mm and 23.2 kg, the panel can be harder to fit around small roof sections and obstacles.
- Newer technology and variable availability: ABC has a shorter field record than older cell types, and stock and pricing vary by installer.
Applications for the AIKO NEOSTAR 3S60 Mono-Glass
The AIKO NEOSTAR 3S60 Mono-Glass is aimed at roofs where output per square metre and long-term reliability count most. AIKO positions the NEOSTAR range mainly for residential and small commercial rooftops.
- Space-limited homes: higher efficiency fits more output onto smaller roofs.
- Split or north-south roofs: the design supports capacity on roofs facing more than one direction.
- Partly shaded roofs: shading optimisation helps where trees, chimneys or neighbouring buildings cast shadows.
- Hot-climate homes: the low temperature coefficient suits long, hot Australian summers.
- Small commercial rooftops: shops, offices and workshops can use the same module for compact systems.
- Battery-ready systems: more daytime output helps charge a home battery and cover evening use.
Is the AIKO NEOSTAR 3S60 Mono-Glass right for you?
The AIKO NEOSTAR 3S60 Mono-Glass may be worth investigating if your priority is high solar generation from each panel, particularly where roof space is limited. Its up-to-25% efficiency, 530W-555W output range and long warranty make it a technically competitive option within the high-efficiency panel segment.
However, choosing the right solar panel should start with your roof and energy requirements rather than a brand name or headline efficiency number. Your installer should assess orientation, tilt, shading, available roof area, local climate, inverter compatibility, system size, electrical design and future battery requirements.
The AIKO NEOSTAR 3S60 may suit you if:
- You want a high-output solar panel for a residential or commercial installation.
- You have limited roof space and need high panel efficiency.
- You are interested in N-type ABC technology.
- You want a 25-year product and 30-year performance warranty.
- Your installer can accommodate the approximately 1.95m × 1.13m module format.
- Your inverter is compatible with the panel’s voltage and current characteristics.
You may want to investigate alternatives if:
- Your roof layout suits smaller modules better.
- Panel weight or roof-access constraints are significant.
- Your installation has complex shading that requires a different system architecture.
- The quoted system price does not provide a suitable balance between panel performance and overall system value.
Before deciding, compare the full system, not just the panel. Energy Matters’ 2026 Australian solar, battery and VPP guide provides broader context on selecting solar generation and storage for Australian homes.
