7.3kW & 11kW | AC EV Charger

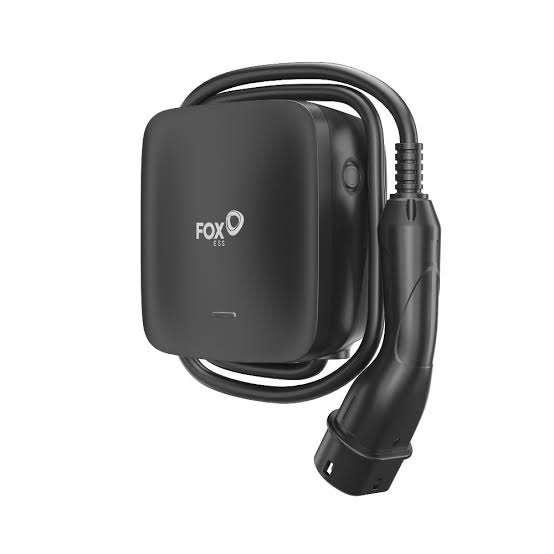

The Fox ESS L Series is a compact smart AC EV charger available in single-phase (7.3kW) and three-phase (11kW) versions. It’s designed to work with rooftop solar, letting you charge your car with surplus solar energy instead of buying power from the grid.
With a small, lightweight design, IP55 and IK08 protection and a tethered Type 2 cable, the L Series is a simple, no-fuss option for Australian homes. Features like dynamic load balancing, scheduled charging and app control give drivers the essentials without the extra complexity of commercial-grade chargers.
Key features of the Fox ESS L Series EV Charger
- Two Power Options
- L07P: 7.3kW single-phase
- L11P: 11kW three-phase
- Tethered Type 2 Cable
- Comes with a built-in Type 2 charging cable, so there’s no need to carry your own
- Solar Charging
- Directs surplus solar power into your EV, reducing reliance on grid electricity
- Dynamic Load Balancing
- Automatically adjusts charging power to avoid overloading your home’s electrical supply
- Scheduled Charging
- Set charging times to take advantage of off-peak electricity rates
- App Control
- Monitor charging, adjust settings and receive software updates through the Fox ESS app
- Simple Installation
- Compatible with both bottom and back cable entry
- Durable Design
- IP55 water and dust protection and an IK08 impact rating
- Flexible Mounting
- Wall or post mounting to suit garages, carports and driveways
Specifications of the Fox ESS L Series EV Charger
- Models: L07P (7.3kW), L11P (11kW)
- Rated power: 7.3kW / 11kW
- Phase: Single-phase (L07P) / Three-phase (L11P)
- Rated input voltage: 230V ±20% (single-phase) / 400V ±20% (three-phase)
- Max. current: 32A (L07P) / 16A (L11P)
- Frequency: 50/60Hz
- Connector type: Type 2 plug (tethered)
- Charging cable length: 5m (standard), 6m (optional)
- Start mode: Plug & Charge or app
- Connectivity: Bluetooth, Wi-Fi (2.4GHz)
- Residual current detection: 6mA DC
- Electrical protection: Over/under voltage, overcurrent, leakage current, ground, surge, over-temperature, tamper and PEN protection
- Protection rating: IP55, IK08
- Operating temperature: -25°C to 50°C
- Installation: Wall-mount or post-mount
- Dimensions (W x H x D): 196 x 197 x 105 mm
- Weight: 3.7kg (L07P) / 4.0kg (L11P)
- Certifications: CE, CB, RCM, UKCA
- Standards: EN/IEC 61851-1:2019, EN/IEC 61851-21-2:2021
Fox ESS L Series EV Charger warranty
The Fox ESS L Series comes with a manufacturer’s warranty. As with any EV charger, buyers should check the warranty period and coverage with their installer, as terms and support quality may vary across regions.
Pros of the Fox ESS L Series EV Charger
- Ultra-compact and lightweight: At just 196 x 197 mm and around 4kg, it’s one of the smallest chargers around and fits neatly into tight garages and carports.
- Works without internet: Bluetooth lets you start and control charging from your phone even if your home Wi-Fi drops out.
- Simple to use: Plug & Charge mode means you can just plug in your car and charging starts automatically, with no card or app needed.
- Comprehensive safety protection: Built-in DC leakage detection, PEN fault protection, tamper protection and surge protection keep drivers and vehicles safe.
- Certified for Australia: RCM certification confirms it meets Australian electrical safety and compliance requirements.
- Longer cable option: An optional 6m cable gives extra reach for driveways and carports where your car’s charging port is further away.
Cons of the Fox ESS L Series EV Charger
- External RCCB required: An external residual current circuit breaker must be installed, adding to installation costs.
- No OCPP support: The L Series can’t connect to third-party charging management platforms, which limits its use for businesses and shared car parks.
- No RFID access control: Without an RFID reader, there’s no simple way to restrict who can use the charger.
- Limited connectivity: It supports only Bluetooth and 2.4GHz Wi-Fi, with no Ethernet or 4G option for garages with weak Wi-Fi.
- Tethered cable only: There’s no socket version, so you can’t use your own cable or swap to a different length later.
- Three-phase needed for 11kW: The L11P requires three-phase power, so most Australian homes on single-phase will be limited to 7.3kW.
Applications for the Fox ESS L Series EV Charger
The Fox ESS L Series is well-suited to a range of Australian charging scenarios:
- Homes with solar: Ideal for households that want to charge their EV with surplus solar during the day and cut running costs.
- Single-EV households: A practical, affordable fit for homes with one EV and straightforward charging needs.
- Townhouses and small garages: Its compact size suits tight spaces where a larger charger would get in the way.
- First-time EV owners: A simple option for drivers who want reliable home charging without complicated setup.
Is the Fox ESS L Series EV Charger right for you?
The L Series is not a one-size-fits-all solution, but it fits certain types of users particularly well.
It’s ideal if you:
- Have rooftop solar and want to charge your EV with your own clean energy
- Want a simple charger you can plug in and forget about
- Have limited space in your garage or carport
- Want to charge during off-peak hours to save on electricity costs
- Don’t need advanced features like RFID access or third-party platform integration
Consideration for businesses and advanced users:
If you need OCPP support, RFID access control or wired internet, the L Series may not be enough. The Fox ESS L Max or A Series offer these features, and the A Series also comes in a 22kW three-phase version.
