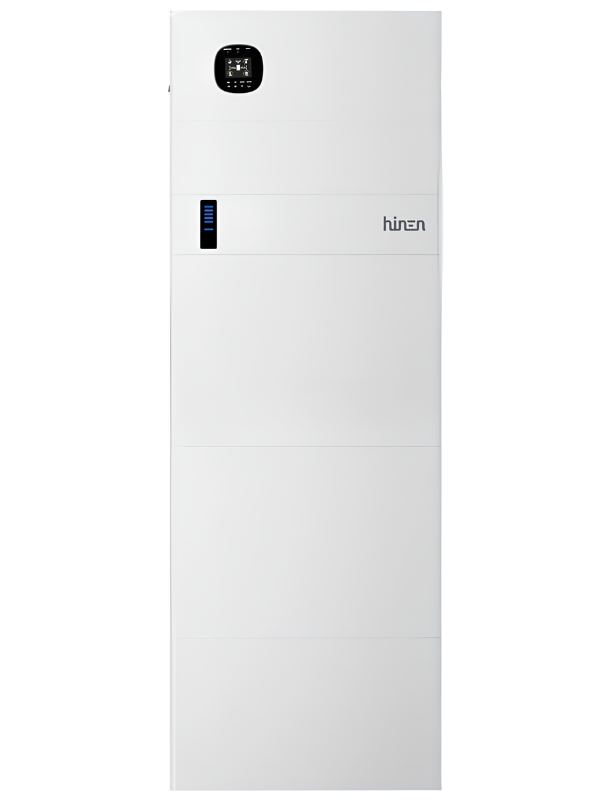

A Series H25T
The Hinen 10–25 kW Three-phase Hybrid All-in-One RESS (A Series H25T) is a high-power, highly scalable storage platform designed for Australian properties that require more than a conventional residential battery system can provide. Its four MPPTs, 10–25 kW output range, support for three-phase unbalanced loads, rapid backup transfer and modular architecture give it a strong feature set for larger installations.
For a property with substantial three-phase loads, the H25T deserves serious consideration alongside competing high-power battery systems.
Did you know Energy Matters is Australia’s largest renewable news, blog and educational resource? Subscribe to Energy Matters’ weekly newsletter and keep updated even with incentives, rebates and recommended solar product offers.
Key features of the Hinen 10–25 kW Three-phase Hybrid All-in-One RESS
The Hinen H25T is designed for applications where conventional 5–10 kW single-phase storage is insufficient. Its three-phase architecture and high output make it particularly relevant to larger homes, properties with substantial electrical loads and selected small commercial applications.
Hinen’s Australian product page identifies the H25T as a 10–25 kW three-phase hybrid all-in-one residential energy storage system. The system integrates the inverter and battery architecture into a stackable solution intended to simplify installation and system expansion.
Key features include:
- 10–25 kW output options: Buyers can select A10000T, A15000T, A20000T or A25000T according to the property’s load profile.
- Four MPPT inputs: Four independent MPPTs provide flexibility when connecting solar arrays across different roof orientations or strings.
- Up to 30 kW recommended PV input: Hinen specifies up to 30 kW of recommended PV input across the H25T range, with 120% PV oversizing on the Australian product page.
- Three-phase unbalanced output: The system supports 100% three-phase unbalanced output, which can be useful where household or commercial loads differ substantially between phases.
- Fast backup transfer: Hinen specifies a backup-load transfer time of ≤10 milliseconds, supporting rapid changeover during a grid interruption.
- Parallel capability: Up to six H25T inverter units can be operated in parallel, allowing the overall system to reach up to 150 kW of output in Hinen’s high-power ESS architecture.
- Stackable plug-and-play design: Hinen says the integrated design can save around 50% on installation time by reducing additional battery cabling.
- Built-in changeover switch: The system can manually select between backup and bypass modes for backup loads.
- Smart load management: Dry-contact functionality can control compatible smart loads and support automated generator start/stop functions.
- Remote monitoring: The Hinen battery platform supports energy tracking and remote upgrades through the Hinen app.
Specifications of the Hinen 10–25 kW Three-phase Hybrid All-in-One RESS
The Hinen H25T specification range varies depending on the selected inverter. The following table summarises the principal specifications published for the Australian A Series H25T and its B8900M-HA high-voltage battery configuration.
Specification | Detail |
Inverter output range | 10–25 kW continuous, three-phase |
Battery chemistry | Lithium iron phosphate (LiFePO₄) |
Compatible battery | B8900M-HA high-voltage module |
Battery capacity per module | 8.9 kWh usable |
Stackable capacity | Up to 26.7 kWh (1–3 modules) per inverter; more with parallel units |
Battery voltage range | 150–800V (ultra-wide) |
MPPT inputs | 4 |
PV oversizing | Up to 120% |
Max parallel units | Up to 6 inverters |
Backup transfer time | ≤10 milliseconds |
Enclosure rating | IP65 |
Operating temperature | -25°C to 60°C |
Communication | Hinen app, CT meter data fusion, dry contacts for generator start/stop |
Standard warranty | 10 years (product and performance) |
Hinen 10–25 kW Three-phase Hybrid All-in-One RESS Warranty
Hinen backs the A Series H25T system in Australia with a comprehensive 10-year manufacturer warranty covering both the hybrid inverter and the associated B8900M-HA high-voltage battery modules. This warranty ensures peace of mind for Australian homeowners and business operators investing in long-term renewable assets.
- 10-year comprehensive warranty: Covers system manufacturing defects and key components under standard operating conditions across Australian climate zones.
- Battery throughput guarantee: Includes linear performance protection for the Lithium Iron Phosphate (LFP) cell chemistry, guaranteeing long-term capacity retention under daily cycling schedules.
Pros of the Hinen 10–25 kW Three-phase Hybrid All-in-One RESS
The Hinen H25T has several characteristics that stand out in the high-power three-phase storage category. Its biggest strengths lie in output capability, scalability, and integrated system design.
- High 10–25 kW three-phase output: The range covers several load profiles, from larger residential properties through to selected small commercial applications.
- Strong solar input capability: Four MPPTs and up to 30 kW recommended PV input give installers considerable flexibility when designing a large solar array.
- 100% three-phase load balancing: The ability to support three-phase unbalanced output can improve compatibility with properties where phase loads vary significantly.
- Fast backup transition: A ≤10 ms backup transfer time is a strong feature for customers prioritising power continuity.
- Expandable architecture: Up to six inverter units can be paralleled, enabling very high system output where appropriate.
- Integrated, installation-focused design: The stackable approach reduces the need for separate components and, Hinen says, can save around 50% of installation time.
Cons of the Hinen 10–25 kW Three-phase Hybrid All-in-One RESS
The Hinen H25T is powerful, but that power comes with trade-offs. It is not necessarily the most economical or practical solution for every Australian household.
- Potentially oversized for average homes: A 20–25 kW three-phase inverter can be excessive if a property’s simultaneous electrical demand is relatively low.
- Battery capacity can require careful sizing: The available 8.9–26.7 kWh integrated configuration may not provide enough energy for extended high-load backup without additional battery expansion.
- Larger systems receive reduced marginal battery incentive support: From 1 May 2026, Australia’s STC treatment tapers above 14 kWh and again above 28 kWh, which can affect the economics of larger battery configurations.
- Professional three-phase installation is essential: High-voltage batteries, substantial AC currents and three-phase electrical integration make system design and installation more complex than a basic residential battery setup.
Applications for the Hinen 10–25 kW Three-phase Hybrid All-in-One RESS
The Hinen H25T is most compelling where electrical demand is substantially higher than that of a conventional home. Its three-phase output, high inverter rating and scalable battery architecture give it a broader operating envelope than many mainstream residential systems.
Hinen itself positions its high-power residential ESS range for residences and small- to medium-sized commercial or industrial buildings with multiple high-power loads. Potential Australian applications include:
- Large three-phase homes: Suitable for properties with multiple air conditioners, pumps, electric hot water, pool equipment, EV charging and other substantial loads.
- Rural and acreage properties: Useful where backup resilience and high electrical capacity are priorities.
- Home workshops: Three-phase equipment and high-power machinery can make a higher-output energy storage system attractive.
- Small commercial premises: Offices, retail sites, professional practices and other smaller facilities may benefit from three-phase storage.
- Solar-heavy properties: Up to 30 kW of recommended PV input allows the H25T to be paired with a comparatively large solar array.
- Backup applications: The ≤10 ms transfer specification and built-in changeover functionality make backup power a central part of the design.
- Future expansion: Up to six inverter units can be paralleled in Hinen’s architecture, providing substantial scalability.
- Smart-load management: Dry-contact functionality can support controlled loads such as heat pumps, water heaters or air conditioners, depending on the installation.
For properties with ordinary household consumption, however, a 20–25 kW inverter may be considerably more capacity than necessary. In those cases, a smaller system could provide a better balance between upfront cost, battery capacity and expected energy savings.
Is the Hinen 10–25 kW Three-phase Hybrid All-in-One RESS
The Hinen H25T makes the most sense when high power is the primary requirement, rather than simply having the largest possible battery. It is particularly attractive for large three-phase homes, acreage properties, workshops and small commercial sites where multiple high-demand appliances or equipment may operate simultaneously.
A good Hinen H25T assessment should therefore start with the property’s energy profile. Review at least 12 months of electricity consumption, maximum demand, solar generation, phase loading, and planned future loads, such as EV charging or electric hot water, before selecting the inverter size.
The H25T could be a good fit if you:
- Have a three-phase connection and substantial electrical loads.
- Want high backup capacity for essential circuits.
- Plan to install a large solar PV system.
- Need four MPPT inputs for a complex solar roof.
- Expect your energy demand to increase.
- Want a modular system that can be expanded later.
- Need support for significant three-phase loads.
- Are considering a residential or small commercial high-power ESS.
A smaller system may be better if you:
- Have relatively low daily electricity consumption.
- Rarely exceed 5–10 kW of simultaneous demand.
- Primarily want evening solar shifting rather than whole-property backup.
- Have limited available solar PV capacity.
- Are trying to maximise the financial benefit of Australia’s 2026 battery incentive around the first 14 kWh of capacity.
