Multi-MPPT String Inverter for 1000 Vdc System

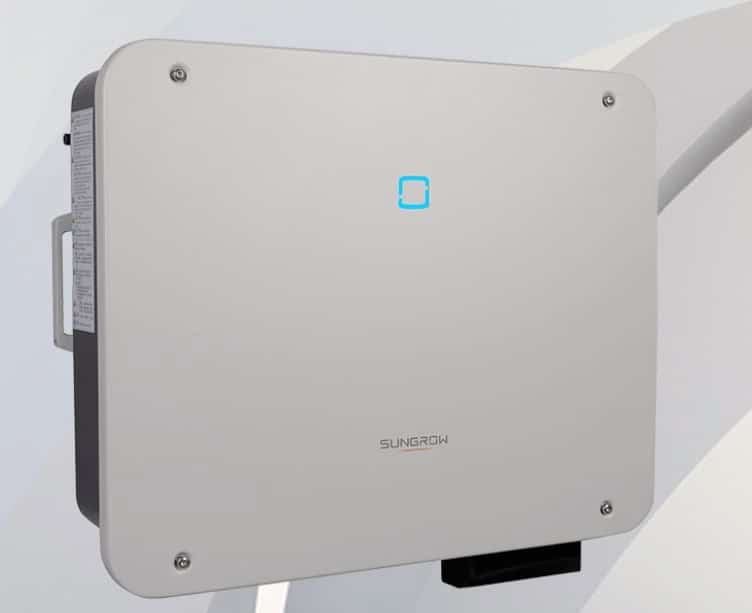

The Sungrow SG50CX-P2 is a powerful, feature-rich string inverter for Australian 1000Vdc solar systems. Its high efficiency, MPPT optimisation, smart monitoring, and robust design cater to homeowners and businesses seeking a high-performing and future-proof solar solution.
If your solar system falls within the 33kW to 50kW range and prioritises advanced features and remote monitoring, the SG50CX-P2 is worth considering.
Key features of the Sungrow SG50CX-P2 String Inverter
- High efficiency: The SG50CX-P2 shines with a maximum efficiency of 98.5%, ensuring you capture the most solar energy possible.
- Multiple MPPTs (Maximum Power Point Trackers): With up to 4 MPPTs, this inverter can optimise power production from different sections of your roof, even if shaded areas exist. This is particularly beneficial for Australian homes with unpredictable sunlight patterns.
- 1000Vdc compatibility: This inverter is suitable for larger solar setups, allowing you to scale your system for future needs.
- Dynamic shading optimisation: This feature automatically adjusts power output to compensate for shading, maximising overall energy harvest.
- Built-in protection: The SG50CX-P2 has surge arresters, residual current protection, and anti-corrosion features, making it well-suited for the harsh Australian climate.
- Smart monitoring: Enjoy easy local and online monitoring via a user-friendly app or web interface. You can track your system’s performance and identify any potential issues remotely.
Specifications of the Sungrow SG50CX-P2 String Inverter
- Model variants: SG30CX-P2, SG50CX-P2
- No. of PV strings per MPPT: 3 | 4
- No. of independent MPP inputs: 2
- Efficiency: Up to 98.5%
- Maximum AC power output: 29.9kW (SG30CX-P2) or 50kW (SG50CX-P2)
- Dimensions (W x H x D): 645 mm * 575 mm * 245 mm
- Weight: 38 kg | 41 kg
Sungrow SG50CX-P2 String Inverter warranty
In Australia, the Sungrow SG50CX-P2 typically comes with a standard 10-year warranty. However, confirming the warranty specifics with your local Sungrow distributor or installer is advisable, as terms may vary.
Applications for the Sungrow SG50CX-P2 String Inverter
The SG50CX-P2’s capabilities make it suitable for a range of applications, including:
- Residential solar systems: Powering homes with clean, reliable solar energy.
- Small commercial applications: Providing solar solutions for businesses, shops, and offices.
- Off-grid or hybrid systems: When paired with battery storage, the SG50CX-P2 can support applications requiring backup power or complete energy independence.
Pros of the Sungrow SG50CX-P2 String Inverter
- High efficiency and power output: The SG50CX-P2 boasts a maximum efficiency of 98.5%, ensuring you get the most out of your solar panels. With up to 50kW output, it’s ideal for large commercial installations.
- Lightweight design and easy installation: This inverter is significantly lighter than previous models, allowing for easier one-person installation.
- Multiple MPPT inputs: Featuring 4 independent MPPT inputs, the inverter optimises energy production even in shaded conditions.
- Advanced AFCI 2.0 technology: This built-in arc fault detection system offers safety and peace of mind.
- Durability and reliability: The SG50CX-P2 is built to withstand harsh weather conditions with an IP66 rating and has a 10-year warranty for added confidence.
- Future-proof design: This inverter is compatible with high-power modules and bifacial panels and is prepared for advancements in solar technology.
Cons of the Sungrow SG50CX-P2 String Inverter
- Potentially higher cost: As a high-power inverter with advanced features, the SG50CX-P2 might have a higher upfront cost than some lower-power options.
- Requires qualified installer: A certified solar professional installation is likely recommended due to its higher power rating and features.
Is the Sungrow SG50CX-P2 String Inverter right for you?
Here’s a breakdown to help you decide:
Ideal for:
- Residential solar systems with a capacity between 33kW and 50kW (depending on model variant).
- Rooftops with partial shading or varying panel orientations can benefit from MPPT optimisation.
- Individuals who prioritise system monitoring and remote maintenance capabilities. capacity. as premium features, may come at a higher cost.
- Not ideal for:
- Smaller residential systems below 33kW capacity.
- Systems with limited budget constraints, such as premium features, may come at a higher cost.
Learn more about Sungrow Solar Inverters and Battery Storage.
