BMT-G4/088A | 335W | BMT-G3/088A |
315W Ultra-lightweight Solar Panel

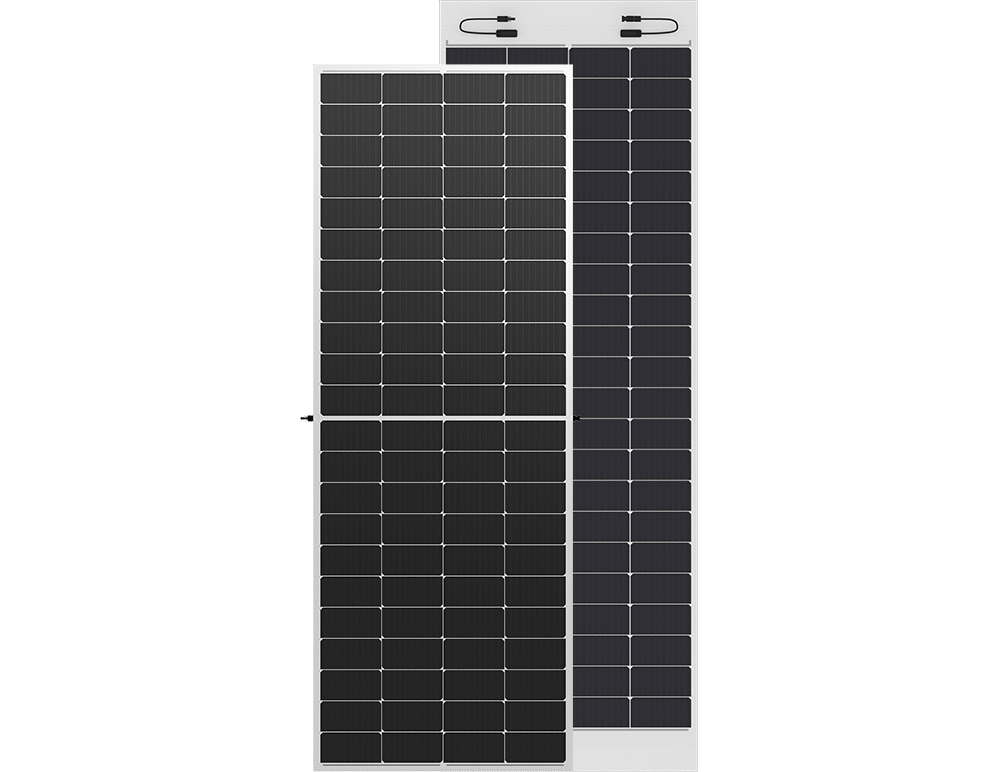

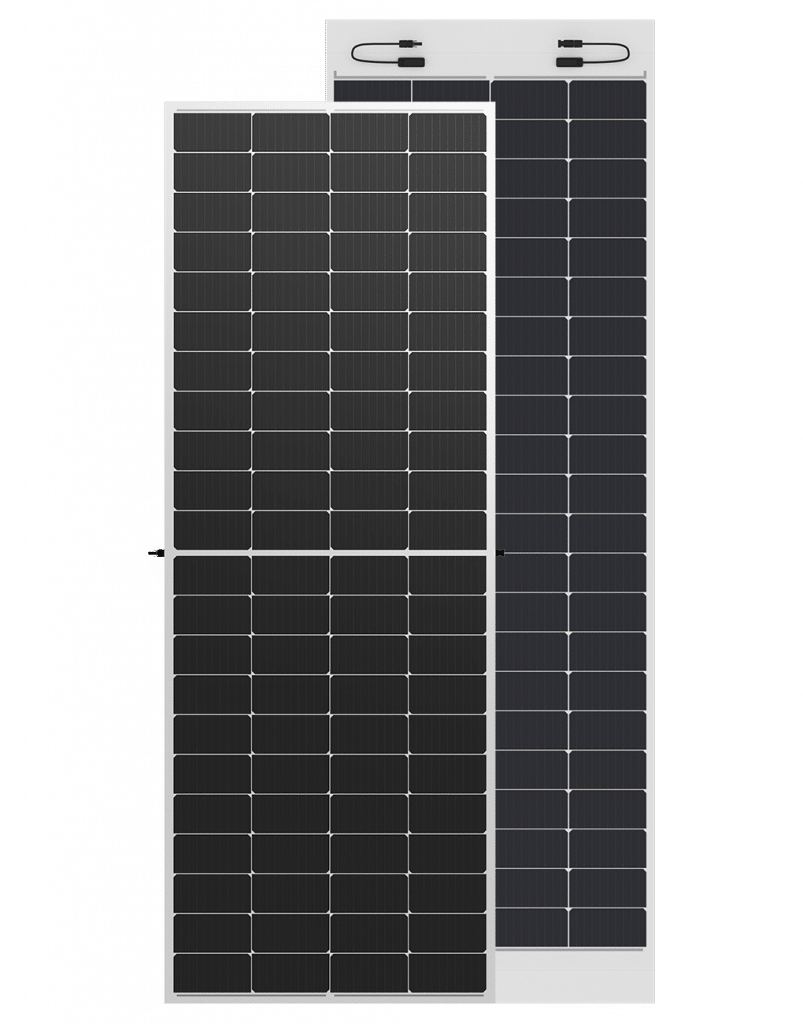

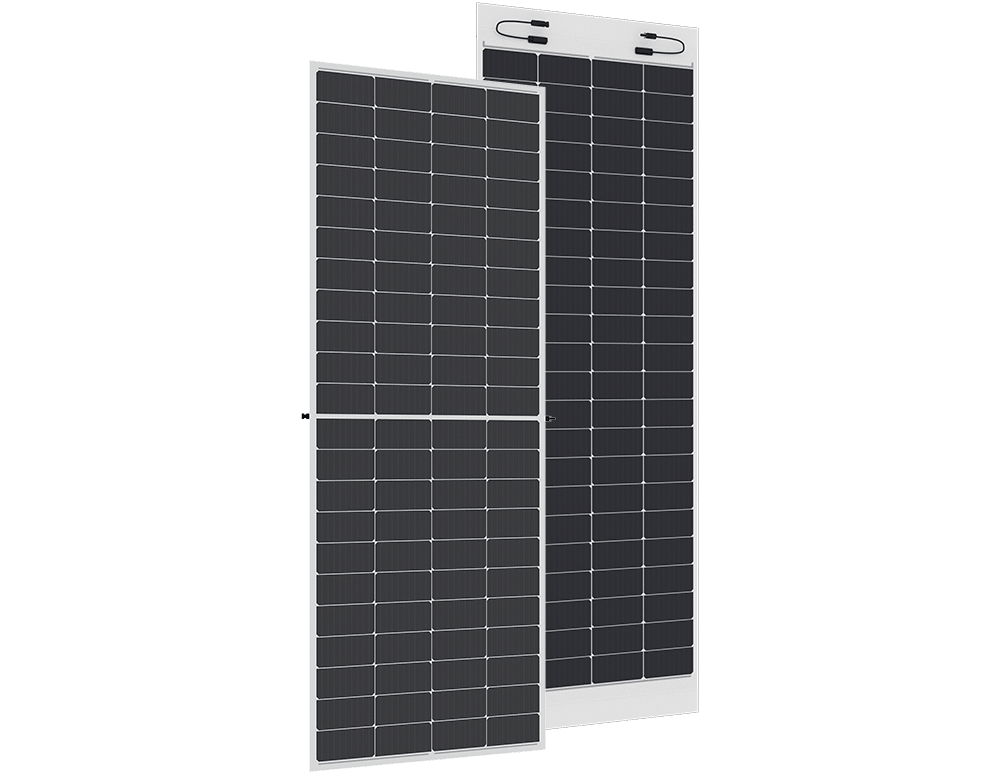

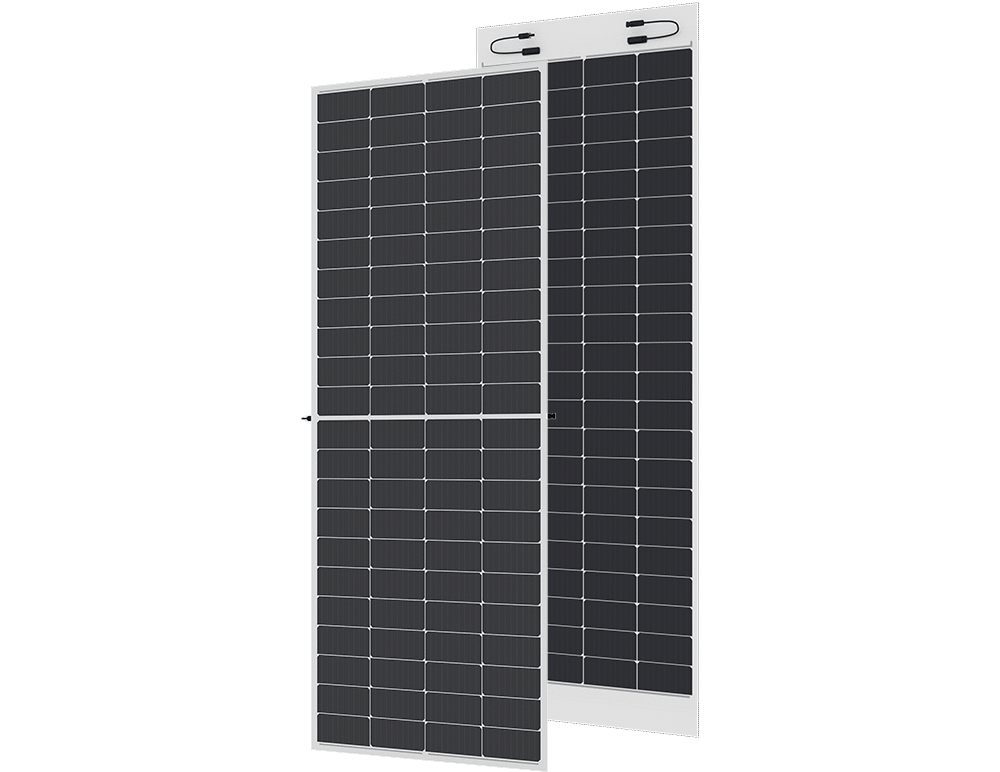

The GoodWe Galaxy Series is a revolutionary type of solar panel categorised as Building-integrated photovoltaics (BIPV). Unlike traditional solar panels with aluminium frames, the Galaxy Series boasts a frameless design and utilises ultra-thin tempered glass. This translates to a feather-light weight of around 6kg per square meter, a significant reduction compared to the standard 18 kg-25 kg of conventional panels.
If you have a roof with limited weight capacity or prioritise a sleek solar solution, the Galaxy Series is definitely worth considering.
Key features of the GoodWe Galaxy Series
- Ultra-lightweight: Ideal for roofs with low weight capacity, such as flat roofs, carports, pergolas, and heritage buildings where traditional solar panels might pose a structural risk.
- Leak-proof design: The frameless, thin profile allows for gluing or clamping directly onto the roof surface, eliminating the need for roof penetrations that can cause leaks.
- Fast and easy installation: The lightweight design and innovative mounting system enable rapid installation, potentially reducing installation costs by up to 60% compared to traditional panels.
- Durability: Despite their lightweight construction, Galaxy Series panels are built to withstand harsh Australian conditions. They have a 1.6mm layer of tempered glass for superior hail and wind resistance and carry fire safety certifications.
- Aesthetics: The frameless design creates a sleek, modern look, ideal for homeowners who want their solar panels to complement their home’s architecture.
Specifications of the GoodWe Galaxy Series solar panel
- Two models are available: BMT-G4/088A (335W) | BMT-G3/088A (315W)
- Dimensions: 2319mm x 777mm x 3.5mm | 2319mm x 777mm x 4mm
- Module efficiency: Up to 20.4%
- Installation methods: Clamps/glue/hot air welding
- Certifications: TUV and IEC certified for hail, wind, heat, and fire protection
GoodWe Galaxy Series solar panel warranty
GoodWe Galaxy Series panels come with a 12-year product warranty and a 30-year power generation performance warranty, ensuring peace of mind for your investment.
Applications for the GoodWe Galaxy Series
Beyond the typical rooftop installation, the Galaxy Series opens doors for solar power in various applications:
- Residential applications: Expand your solar power by incorporating panels on patios, pergolas, carports, or sheds, generating additional clean energy for your home.
- Commercial applications: Flat roofs on commercial buildings can benefit from the Galaxy Series’ lightweight design, contributing to sustainable energy generation without compromising structural integrity.
- Specialised situations: The Galaxy Series is perfect for unconventional applications like solar trailers or building facades, where aesthetics and weight limitations are crucial.
- Heritage buildings: The lightweight design minimises stress on older roof structures.
- Architecturally designed homes: The sleek aesthetics complement modern architectural styles.
Pros of the GoodWe Galaxy Series solar panel
- Ultra-lightweight design: Perfect for roofs with low weight capacity, where traditional panels aren’t suitable.
- Leak-proof installation: Zero penetration methods like clamping and gluing prevent water leakage.
- Fast and easy installation: Takes only 3 minutes per panel to install, reducing labor costs.
- Durable and hail-resistant: 1.6mm tempered glass protects the panels from hail and strong winds.
- Multiple applications: Suitable for structures beyond rooftops, including pergolas, carports, and sheds.
- Strong warranties: Backed by a 12-year product warranty and a 30-year performance warranty for peace of mind.
Cons of the GoodWe Galaxy Series solar panel
- Potentially higher cost: The specialised design might come at a premium price compared to traditional panels.
- Lower efficiency: The current efficiency rating might be slightly lower than some high-efficiency conventional panels.
Is the GoodWe Galaxy Series right for you?
While the Galaxy Series offers a unique set of advantages, it’s not a one-size-fits-all solution. Here’s how to decide if it’s the right choice for you:
- Limited roof capacity: If your roof has a weak structure that can’t support the weight of traditional solar panels, the Galaxy Series is a perfect solution. Its featherweight design minimises stress on your roof, making solar power a viable option.
- Waterproofing concerns: The frameless design and zero-penetration mounting methods (clamping, gluing, or hot air welding) eliminate the risk of leaks associated with traditional solar panel installations. This makes the Galaxy Series ideal for roofs with compromised waterproofing or flat roof applications.
- Aesthetics: The Galaxy Series’s sleek, frameless design can complement your home’s architectural style, creating a more integrated and visually appealing solar installation.
- Budget: While the lightweight design can lead to faster installation and potentially lower labour costs, the Galaxy Series might cost more upfront than traditional panels.
Learn more about GoodWe inverters, batteries, EV chargers, and solar panel products.
