Turnkey Station for 1500 Vdc System MV Transformer Integrated

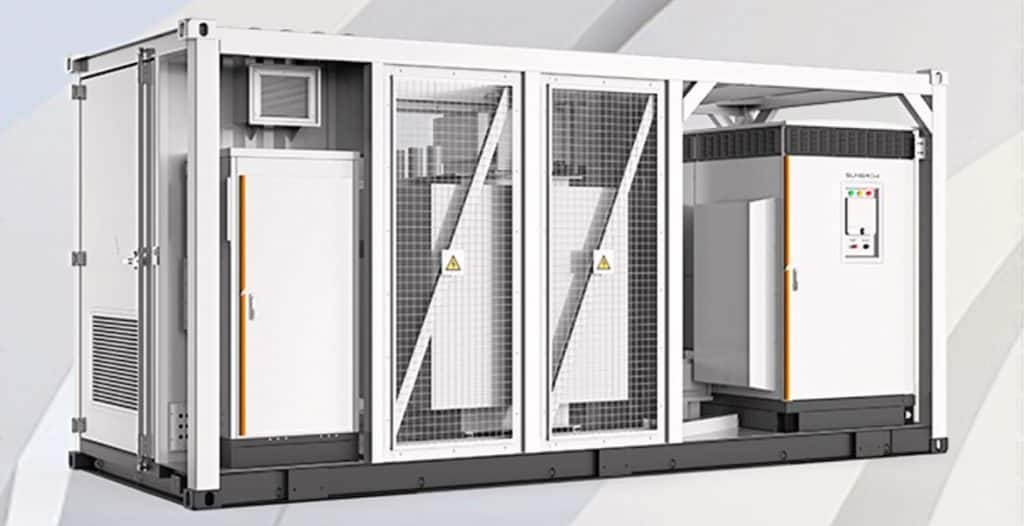

The Sungrow SG3125HV-MV-30 central inverter presents a compelling solution for large-scale solar projects in Australia. Its high efficiency, smart O&M features, and cost-effective design make it a strong contender for commercial and utility-scale installations.
Key features of the Sungrow SG3125HV-MV-30 Central Inverter
- High efficiency: The inverter boasts an impressive maximum efficiency of 99%, achieved through advanced three-level technology. This translates to maximum energy production from your solar panels.
- Durability in Australian conditions: Effective cooling ensures the inverter operates at full power even in scorching temperatures up to 50°C, ideal for the harsh Australian climate.
- Smart Monitoring and Maintenance (O&M): Integrated zone and MV parameter monitoring allows for real-time analysis and troubleshooting, minimising downtime and maximising system performance. The modular design further simplifies maintenance procedures.
- Reduced costs: The 20-foot container design minimises transportation and installation costs. Additionally, the 1500Vdc system design lowers overall system costs.
- Grid support features: The inverter complies with relevant Australian grid connection standards and offers features like Low/High Voltage Ride Through (LVRT/HVRT) and power control, ensuring stable grid integration.
Specifications of the Sungrow SG3125HV-MV-30 Central Inverter
- Capacity: 3125 kVA
- Maximum DC input voltage: 1500 VDC
- Efficiency: Up to 99%
- Cooling method: Temperature-controlled forced air cooling
- Degree of protection: Inverter: IP65 / Others: IP54
- Dimensions (W*H*D): 6058 * 2896 * 2438 mm
- Weight: 15 T
Sungrow SG3125HV-MV-30 Central Inverter warranty
The specific warranty details for the SG3125HV-MV-30 may vary depending on your location and installer. However, Sungrow typically offers a standard warranty of 5-10 years on its inverters, with extended warranties potentially available for purchase.
Applications for the Sungrow SG3125HV-MV-30 Central Inverter
The SG3125HV-MV-30 is perfectly suited for large-scale solar power systems, such as:
- Solar farms: This inverter’s high efficiency and power handling capabilities make it ideal for utility-scale solar farms.
- Commercial and industrial facilities: Businesses with high energy demands can benefit from the reliable power generation and cost-saving features of the SG3125HV-MV-30.
- Large rooftop solar installations: Large buildings like warehouses and shopping centres can utilise this inverter to generate clean energy for their operations.
Read more about:
Pros of the Sungrow SG3125HV-MV-30 Central Inverter
- High efficiency: The Sungrow SG3125HV-MV-30 boasts a maximum efficiency of up to 99.9%, which means minimal energy loss during the conversion from DC to AC power. This translates to higher overall system output and electricity generation.
- Reduced transportation and installation costs: The inverter’s 20-foot container design minimises transportation and installation complexity, potentially leading to cost savings for solar projects.
- Integrated MV transformer: The built-in medium voltage (MV) transformer eliminates the need for a separate transformer, simplifying system design and potentially reducing equipment costs.
- Multiple MPPT trackers: This inverter likely features multiple Maximum Power Point Tracking (MPPT) trackers, which allow for optimisation of energy production even under uneven sunlight conditions.
- Mobile app monitoring: With a mobile app (availability to be confirmed), you can conveniently monitor your inverter’s performance and system health remotely.
- Strong reputation: Sungrow is a well-established brand in the solar industry, potentially indicating reliable product quality and customer support.
Cons of the Sungrow SG3125HV-MV-30 Central Inverter
- Higher upfront cost: Central inverters generally have a higher initial cost than string inverters.
- Single point of failure: If the central inverter malfunctions, the entire solar system will be inoperable until it’s repaired or replaced.
Is the Sungrow SG3125HV-MV-30 Central Inverter right for you?
If you’re planning a large-scale solar project in Australia and prioritise efficiency, ease of maintenance, and cost-effectiveness, the Sungrow SG3125HV-MV-30 is a strong contender. However, it’s essential to consider your specific needs. Here are some additional factors to keep in mind:
- Project size: Ensure the inverter’s capacity aligns with your project’s power requirements.
- Budget: While the SG3125HV-MV-30 offers cost-saving features, factor in the initial investment compared to other options.
- Grid connection requirements: Verify compatibility with your local grid connection standards.
Learn more about Sungrow Solar Inverters and Battery Storage.
