Home Storage Solution (LV)
The Afore Single Phase Home Storage Solution (LV) is a practical and efficient energy storage system designed for Australian households. Its all-in-one design, scalability, and smart energy management features make it a compelling choice for homeowners switching to solar power.
With strong backup capabilities and flexible expansion options, it offers great value for those seeking energy independence, reliability, and long-term savings.
If you’re after a user-friendly, future-proof home battery system, this Afore solution is definitely worth considering.
What is the Afore Single Phase Low Voltage (LV) solution?

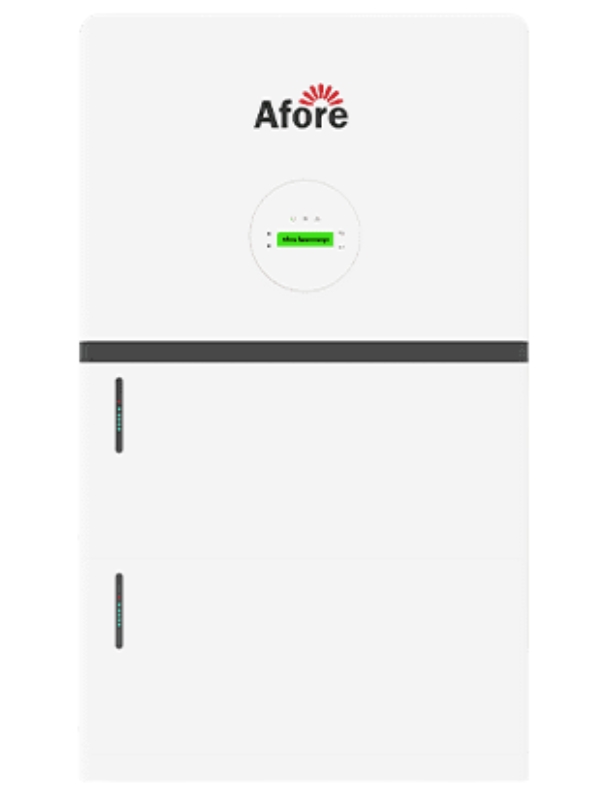

Afore’s single-phase storage solution generally includes two main parts: the AF Series Low Voltage (LV) Hybrid Inverter and a compatible Lithium Iron Phosphate (LFP) Battery Pack.
Unlike high-voltage systems that operate at hundreds of volts, this system uses a 48V/51.2V architecture. This is a well-established standard in the solar industry, recognised for its safety and modularity.
Key features of the Afore Single Phase Home Storage Solution (LV)
- All-in-One Design: Combines an inverter, battery charger, UPS functionality, and a battery enclosure into a single, compact system, simplifying installation and reducing wiring complexity.
- AI smart energy management: Automatically optimises charging and discharging based on real-time electricity tariffs and consumption patterns, reducing reliance on the grid.
- Modular battery expansion: Supports scalable storage capacity—from around 5 kWh up to over 30 kWh—allowing homeowners to expand over time.
- High-efficiency performance: Offers a conversion efficiency of over 98%, minimising energy losses during operation.
- IP66 weatherproof rating: Suitable for both indoor and outdoor installations, built to withstand Australia’s harsh weather conditions.
- Advanced safety features: Includes anti-islanding protection, optional AFCI, rapid shutdown readiness, and remote monitoring capabilities.
Specifications of the Afore Single Phase Home Storage Solution (LV)
- Inverter power range: Typically 3 kW to 6 kW (single-phase)
- Battery voltage range: Low voltage (40–60 V)
- Battery capacity: ~5.12 kWh to 30.72 kWh (expandable)
- PV input voltage: Up to 550 V
- MPPT range: Approx. 80–500 V
- Efficiency: Up to 98%
- Peak backup output: Up to 150% overload capacity
- Installation rating: IP66 (indoor/outdoor)
- Monitoring: Smart app with remote firmware updates
Afore Single Phase Home Storage Solution (LV) warranty
Afore products in Australia are supported by local warehousing and after-sales service, ensuring faster response times and compliance with Australian standards.
- Typical warranty coverage for Afore hybrid inverters is around 5 years, depending on the installer and configuration
- Batteries may have separate warranties based on cycle life and manufacturer terms
- Local support improves reliability and peace of mind for homeowners
Pros of the Afore Single Phase Home Storage Solution (LV)
- Modular scalability: The system supports a wide storage range from 5.12kWh up to 30.72kWh, allowing homeowners to start small and expand their capacity as energy needs grow.
- Weatherproof reliability: With an IP66 protection rating, the unit is highly resistant to dust and heavy rain, making it one of the more robust options for outdoor mounting in Australia.
- High backup capability: The system supports a 150% peak output overload for up to 10 seconds, which is crucial for starting heavy appliances such as air conditioners or pumps during a blackout.
- Fast UPS switching: It features a rapid transition time of less than 10ms, ensuring that critical household loads remain powered without interruption during grid failures.
- Battery flexibility: The low-voltage (48V) architecture is compatible with various battery chemistries, including Lithium-ion and Lead-acid, providing users with more hardware options.
- Simplified installation: The pre-wired, all-in-one modular design can reduce labour time by up to 50%, potentially lowering the upfront installation costs for the consumer.
Cons of the Afore Single Phase Home Storage Solution (LV)
- Limited warranty: While some components carry longer terms, the standard factory warranty is often cited at 5 years, which is shorter than the 10-year industry standard offered by premium competitors.
- Brand recognition: Compared to Tier-1 brands like Tesla or Fronius, Afore has a smaller support footprint in Australia, which may lead to slower local service response times or limited parts availability in some regions.
Applications for the Afore Single Phase Home Storage Solution (LV)
- Residential self-consumption: This system is primarily designed for Australian homes looking to offset high peak electricity rates by utilising stored solar power during the evening.
- Emergency backup power: Ideal for rural or blackout-prone areas, the system’s UPS-level switching keeps essential lights, refrigerators, and internet routers running during grid outages.
- Time-of-use optimisation: Homeowners can programme the system to charge from the grid during off-peak hours and discharge during peak periods to maximise savings.
- Off-grid integration: While primarily a grid-tie hybrid, the system can be integrated with generators and modular battery stacks to support semi-off-grid or fringe-of-grid lifestyles.
Is the Afore Single Phase Home Storage Solution (LV) suitable for you?
However, it may not be ideal if:
- You require three-phase power systems
- You have large commercial or industrial energy demands
- You have very limited space (HV systems are often more compact)
Choose Afore LV if:
- You want a budget-friendly entry into battery storage.
- You plan to expand your battery capacity later.
- You need reliable backup for essential appliances.
- You are looking for a Clean Energy Council (CEC)- approved system.
