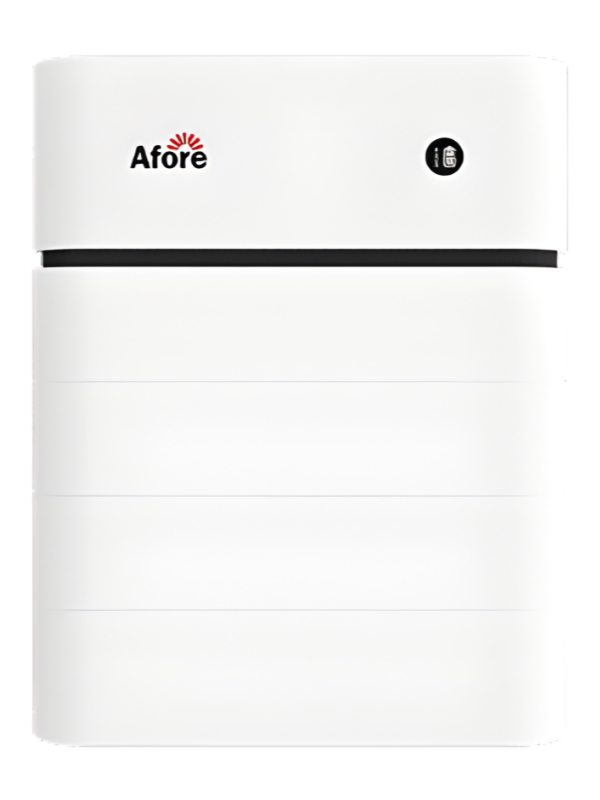

Energy Storage System | AF10000-40000W-HA4
The Afore Stack-Mounted Residential (ESS) AF10000-40000W-HA4 is a powerful, versatile, and future-ready battery solution suitable for Australian homes. Its modular design, high capacity, and robust safety features make it ideal for households looking to maximise solar savings and work towards long-term energy independence.
If you’re planning to expand your solar system or prepare for rising energy demands, this ESS is a smart and dependable investment in Australia’s evolving energy landscape.
Key features of the Afore Stack-Mounted Residential (ESS) AF10000-40000W-HA4
The AF10000-40000W-HA4 is engineered to offer flexibility, efficiency, and smart energy management. Its stackable design allows users to scale storage capacity according to their needs.
- Modular stack design
- Allows easy expansion from 10kW up to 40kW capacity
- Ideal for growing households or evolving energy needs
- Hybrid energy management system
- Integrates solar panels, battery storage, and grid power seamlessly
- Optimises self-consumption and reduces reliance on the grid
- High-voltage battery compatibility
- Supports efficient charging and discharging cycles
- Suitable for residential and commercial hybrid inverter systems
- Backup power (UPS functionality)
- Fast switching during outages (<10ms typical in Afore systems)
- Keeps essential appliances running during blackouts
- Smart monitoring and control
- Remote monitoring via mobile apps or web platforms
- Tracks energy production, consumption, and battery status
- Durable and safe design
- Built-in protection systems (overvoltage, short circuit, anti-islanding)
- Designed for long-term operation in varying climates
Specifications of the Afore Stack-Mounted Residential (ESS) AF10000-40000W-HA4
- Model range: 10kW, 15kW, 20kW, 30kW, 36kW, 40kW
- Max. PV input voltage: 1000V DC
- MPPT voltage range: 150V – 850V
- Battery type: LiFePO4 (LFP)
- Nominal AC voltage: 230V / 400V (Three-Phase)
- Peak backup overload: 150% for 60 seconds
- Protection rating: IP66 (Dust-tight and protected against heavy seas)
Afore Stack-Mounted Residential (ESS) AF10000-40000W-HA4 warranty
The system usually includes a 10-year warranty (split as 5 years free and 5 years paid in some regions, although Australian distributors often offer full 10-year local support).
Pros of the Afore Stack-Mounted Residential (ESS) AF10000-40000W-HA4
- Scalable capacity: Expandable from 10kW to 40kW, making it future-proof
- Energy independence: Reduces reliance on grid electricity and lowers energy bills
- Reliable backup power: Provides an uninterrupted power supply during outages
- Smart energy optimisation: Supports time-of-use management and peak shaving
- Compact stack-mounted design: Saves installation space and simplifies system upgrades
- Cost-effective solution: Positioned as a mid-range, budget-friendly alternative to premium brands
Cons of the Afore Stack-Mounted Residential (ESS) AF10000-40000W-HA4
- Not a premium-tier brand: May lack the long-term reputation of high-end brands
- Limited publicly available technical data: Detailed specifications can vary and may require installer consultation
Applications for the Afore Stack-Mounted Residential (ESS) AF10000-40000W-HA4
This system is highly versatile and can be used across multiple scenarios in Australia:
- Residential solar storage
- Stores excess solar energy for nighttime use
- Reduces electricity bills and improves ROI
- Backup power for homes
- Keeps essential loads running during outages
- Ideal for areas with unstable grid supply
- Small commercial applications
- Supports offices, retail shops, and small businesses
- Helps manage peak demand charges
- Off-grid and hybrid systems
- Suitable for remote properties or rural areas
- Enables energy independence when paired with solar panels
- Time-of-use optimisation
- Charges batteries during off-peak times and discharges during peak rates
Is the Afore Stack-Mounted Residential (ESS) AF10000-40000W-HA4 for you?
Choosing an ESS is a significant investment. The Afore HA4 series is not a “one-size-fits-all” product; it is a premium, high-capacity solution.
You should consider this system if:
- You have three-phase power: While many Aussie homes are single-phase, larger modern builds and rural properties often use three-phase. This system is optimised for high-voltage three-phase hybrid setups.
- You own an electric vehicle (EV): With a discharge capacity of up to 40kW, this system can comfortably handle the high-surge demands of Level 2 EV chargers without drawing from the grid.
- You experience frequent blackouts: The system features UPS-level switching. This means your lights won’t even flicker if the grid goes down.
- You want “future-proof” scalability: The stackable design allows you to start with a smaller capacity (e.g., 10kWh) and add modules as your energy needs grow.
It may not be right if:
- You have a small, single-phase terrace or apartment.
- Your daily energy consumption is below 15kWh.
