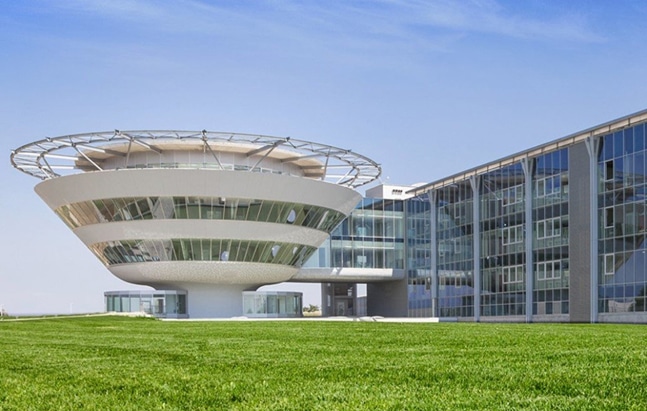

FIMER headquarter
Founded in Italy in 1942, FIMER has grown to become a leading company providing solar inverters and electric vehicle chargers. FIMER acquired the ABB Solar business back in March 2020 making them the fourth largest solar inverter manufacturer in the world.

FIMER employs 1,100 employees across 26 countries including Australia. They have three manufacturing facilities, two in Italy and one in India and three Research & Development centres.

FIMER manufacturers its single and three phase inverters and electric vehicle chargers in Italy.

FIMER in Australia employs approximately 25 staff, with its head office in Melbourne and its warehouse, customer service, repair and testing centre located in Sydney.
A number of FIMER products still retain the ABB brand under a trademark licence agreement, these products will be rebranded to the FIMER brand in Q3 2021.

FIMER’s History, a long and reliable company

The business was established in 1942 by manufacturing welding machines, until 1983 when it started to develop its own inverter technology, since then it continued to grow in the large-scale solar segment. It acquired the ABB Solar business in March 2020, enabling it to expand its brand into the residential, commercial segments.

FIMER’s inverter and EV Charging Range

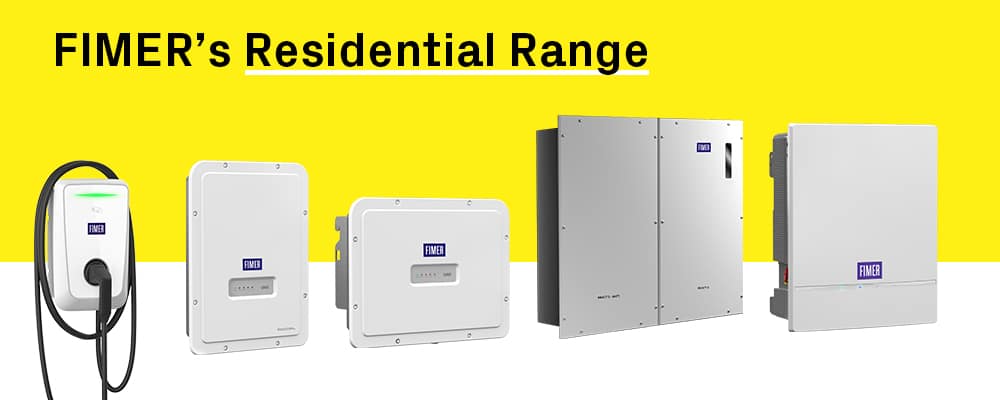

Residential Range

FIMER offers quality, reliability, and value for its residential product offerings. A premium European range is offering all the latest technology and inclusions.

By choosing FIMER:

  • FIMER’s residential range is 100% designed and manufactured in Italy.
  • Get a 10-year full replacement warranty on its single-phase inverters
  • Get 5+5 year warranty on FIMER REACT 2 battery modules
  • Free monitoring for the life of the system
  • Free remote firmware updates possible for inverters
  • Wi-Fi built-in
  • DC Isolator built-in
  • Consumption monitoring possible
  • FIMER’s PowerGain – Shade Optimiser technology is included

Residential products:

  • UNO-DM-PLUS-Q single-phase range
  • REACT 2 Hybrid Inverter & Energy Storage Solution
  • PVS-10/15 three-phase range
  • FLEXA AC Wallbox – EV Charger for the home

FIMER’s Commercial range is ideal for the small to the very large:

  • PVS-10/15
  • PVS-20/33
  • PVS-50/60
  • PVS-100/120
  • FLEXA AC Wallbox
  • FLEXA AC Station Charger

Utility Range

FIMER works for hand in hand with organisations wanting large-scale solar or EV solutions, from the design, approval, installation, commissioning and on-going support. FIMER’s Utilities range includes
  • PVS-175
  • PVS-980
  • PVS-980-BC

FIMER Inverters

UNO-DM-PLUS-Q 2.0kW UNO-DM-PLUS-Q 3.3, 4.0, 4.6, 5.0, 6.0kW REACT 2 Hybrid 3.6, 5.0 kW PVS-10/15 10, 12.5, 15 kW PVS-20/33 20, 30, 33kW
Max efficiency 96.7% 97% 97% 98.5% 98.4%
# of MPPT’s 1 2 2 2 4
Single-Phase or Three-Phase Single Single Single Three Three
Ambient temperature -25…+60°C -25…+60°C -20…+55°C -25…+60°C -25…+60°C
Standby consumption <0.4 W <0.4 W N/A N/A N/A
Connection Wi-fi Optional: Ethernet, RS485 Wi-fi Optional: Ethernet, RS485 Wi-fi, 2x Ethernet, RS485 2x Ethernet, Wi-fi, RS-485 port 2x Ethernet, Wi-fi, RS-485 port (optional)
Built-in DC Isolator No Yes Yes Yes Yes
IP Rating IP65 IP65 IP65 IP65 IP65
Cooling Natural Natural Natural Natural Natural
Noise 50 dBA @ 1 m 50 dBA @ 1 m <50 dBA @ 1 m
AC Backup output, off-grid No No Yes No No
Manufactured Italy Italy Italy Italy Italy
zWarranty 10 years 10 years 10 years 5 years 5 years
Datasheet link link link link link

FIMER Battery

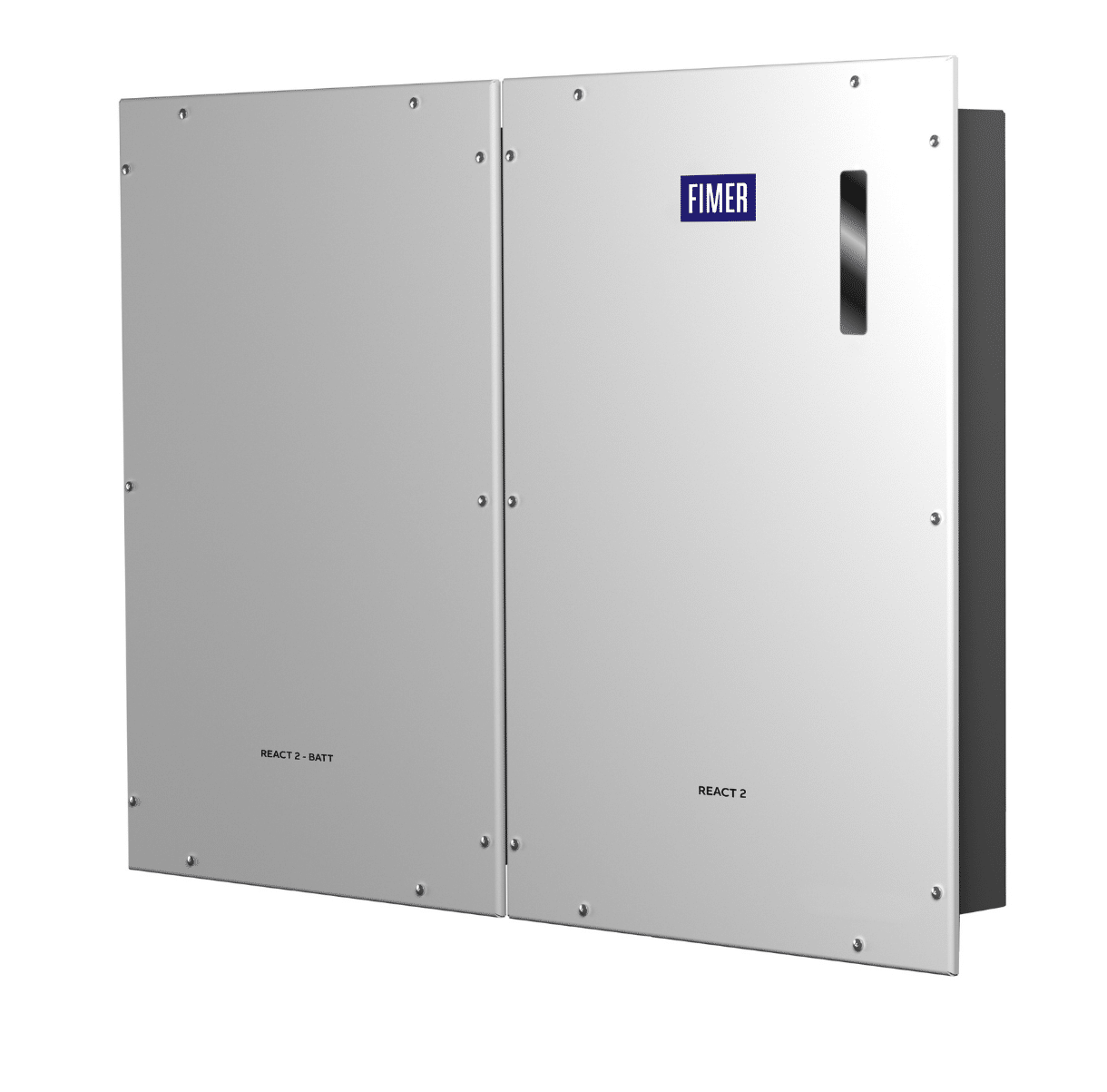

 REACT 2 Battery
4.0kWh
Battery manufacturerSamsung
Battery typeLi-ion
Total Energy4.0 kWh
Max-Battery Module3 x 4 kWh
Total: 12kWh
Deep of Discharge95%
Charge power1.6 kW
Discharge power2 kW
CouplingAC or DC
Ambient temperature-20…+55°C
IP RatingIP54
CoolingNatural
ManufacturedItaly
Warranty5+5 years
Datasheetlink

FIMER EV Chargers

FIMER EV Chargers
 FIMER FLEXA AC WallboxFIMER FLEXA AC StationFIMER Electra DC Station
MountedWall-mounted or Stand-mountedStand-aloneStand-alone
DisplayNoOptionalYes
# of cars charge122 DC + 1 AC
Maximum AC Power per output3.7, 7.4, 11, 22 kW22 kW43 kW
Maximum DC Power per outputN/AN/A30 – 75 kW
RFIDOptionalOptionalYes
Energy MeterBuilt-inBuilt-inBuilt-in
ConfigurationsSocket T2/T3A, Plug T2/GB/TType 2 / Type 3AType 2 / CCS / ChadeMO
ConnectivityEthernet, Wi-Fi. BLE, modem LTE 3G/4GMODBUS TCP/IPEthernet, GSM/3G/4G, WLAN, Bluetooth
Ambient temperature-20…+50°C-25…+50°C-25…+50°C
IP RatingIP 55IP 54IP 54
MaterialsRecycled plastic 100%Stainless steel AISI 304
ManufacturedItalyItalyItaly
WarrantyX YearsX YearsX Years
Datasheetlinklinklink


FIMER enquiries

Please contact FIMER Australia through their website, or contact their call centre 1800 769 663.
